Calculating propagation delay, odd, even and common mode impedance

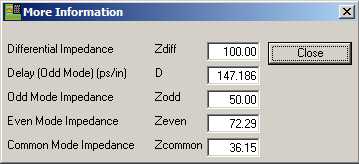

For the Standard Interface clicking More… displays results for differential impedance include odd, even and common mode impedance.

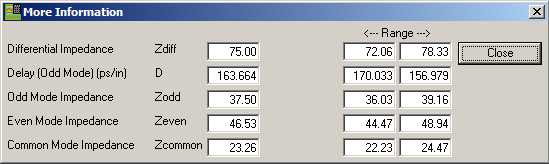

Clicking More… on the The Extended Interface displays the range of results for the selected tolerances.
