Choosing a dielectric layer frequency profile

To choose a dielectric layer frequency profile, click the Edit button in the Extended Substrate Data screen area; the Extended Substrate Data dialog is displayed. Users may specify a frequency profile table for each dielectric layer.

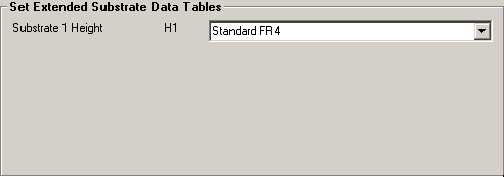

Single dielectric layer

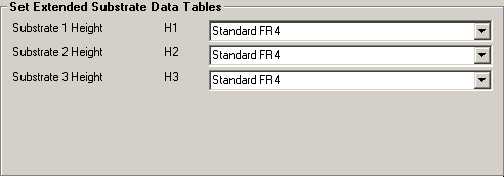

Multiple dielectric layers

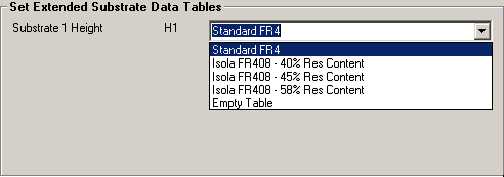

Click the dropdown listbox arrow to display the list of available tables. For each dielectric layer choose a layer profile. Click Close.

To use the layer profile in frequency-dependent calculations ensure the Use Extended Substrate Data checkbox is ticked.
