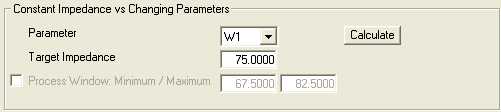

In this example, we hold the differential impedance constant at 75 Ohms and vary the trace width, W1 as H1 and H2 vary. Choose the varying parameter as W1, set the target impedance as 75 Ohms and click Calculate below

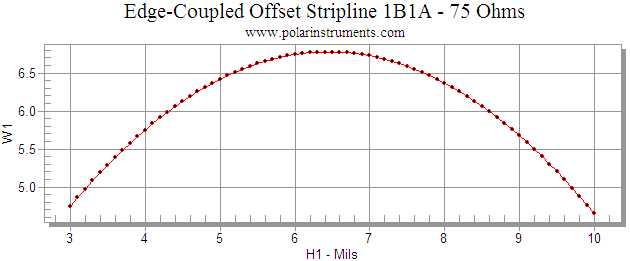

The result is shown below.

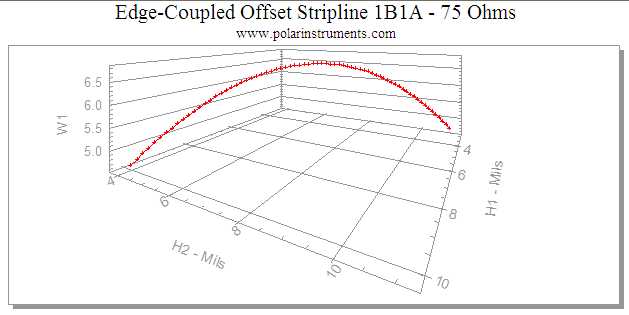

Choose the 3D option button to display the result in three dimensions, i.e as all three parameters vary.
