Frequency-dependent Result Graph And Tables

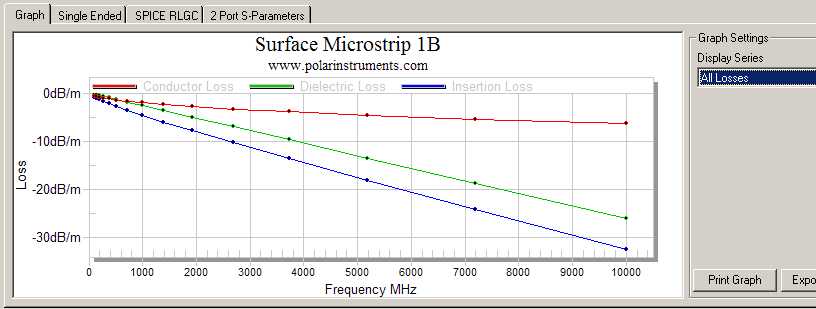

Use the Result Gaph and Table interface to view frequency-dependent calculation results in graphical and tabular form. Choose from the Display Series drop-down list for results for loss, impedance, inductance, resistance, capacitance, conductance and skin depth.
