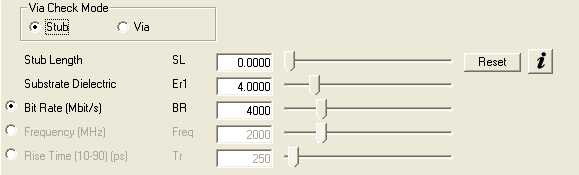

Click the Stub option to calculate the effect of a stub
The Si9000 Via Stub Check supports three modes:
Stub Length, Effective Er and Bit Rate
Stub Length, Effective Er and Single Frequency
Stub Length, Effective Er and Rise Time
Click Bit Rate, Frequency or Rise time as appropriate and use the sliders to specify the stub length, Er value and your chosen parameter.
The Si9000 will change from green through amber and red to indicate the effects of the stub.
