The Si9000 incorporates a via check that provides a simple color coded go/no go check on the potential for signal distortion of a via. Si9000e calculates whether vias are likely to be visible to signals at your chosen operating speed.
Via Length, Effective Er and Bit Rate
Via Length, Effective Er and Single Frequency
Via Length, Effective Er and Rise Time

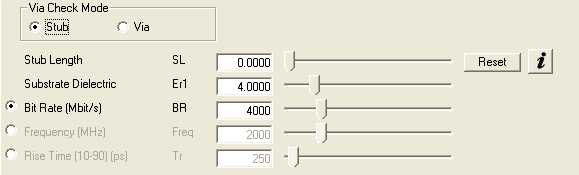

Click Bit Rate, Frequency or Rise time as appropriate and use the sliders to specify the via length, Er value and your chosen parameter.
The Si9000 will change from green through amber and red to indicate the effects of the via.
