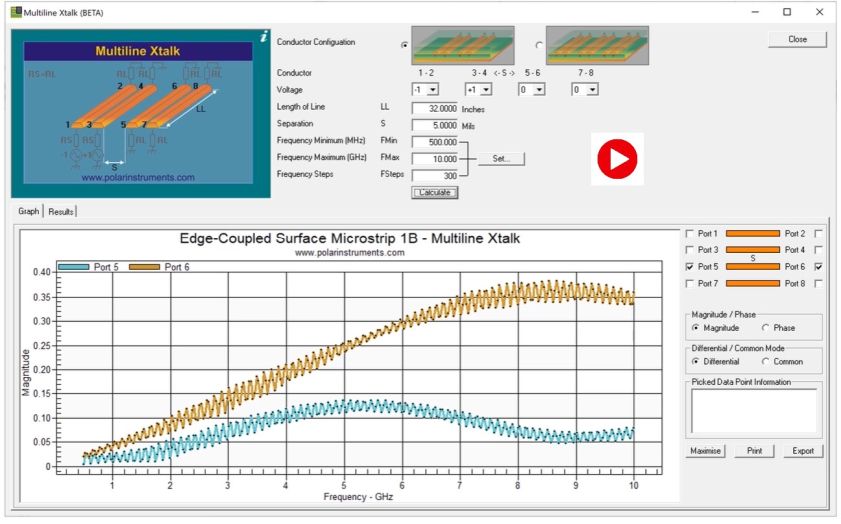

Si8000m / Si9000e Field Solver – differential pair crosstalk

Si8000m / Si9000e

Si8000m / Si9000e Field Solver – differential pair crosstalk

Contents

00:00 Introduction
00:15 Recap on Crosstalk – Microstrip
02:30 Recap on Crosstalk – StripLine
03:12 Behaviour of Differential Pairs when coupled together
05:20 Edge Coupled Offset Striplines
05:50 Summary of Crosstalk on Edge Coupled Surface Microstrips v's Edge Coupled Offset Striplines
06:08 Summary
