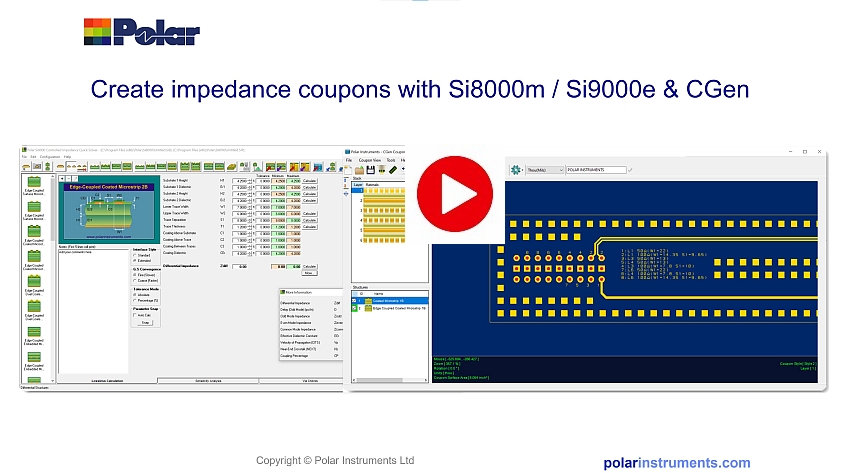

Create impedance coupons with Si8000m / Si9000e & CGEN

Si8000m / Si9000e & CGen

Create impedance coupons with Si8000m / Si9000e & CGEN

Contents

00:00 Introduction
00:15 50 ohm structure setup in Si9000e
00:32 Create stackup in CGen to accept the imported data
00:50 Review of the Symetry option in CGen
01:35 Copy Structure to CGen icon
01:58 Import structure into CGen
02:30 Setup Differential Structure for export
02:56 Import Differential Structure
03:28 Verifying the importing structures
03:33 Choosing the coupon style
04:00 Summary
04:05 Contact details
