Speedstack Structure View

Speedstack Structure View

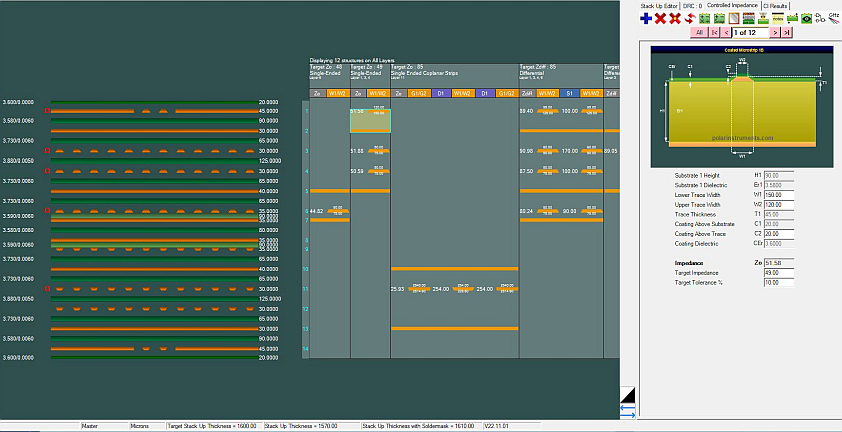

Structure View presents a powerful interactive overview of all the controlled impedance and insertion loss structures on the stackup, simplifying management of layer stack design for PCBs with many transmission lines.

Contents

0:00 Introduction to Speedstack Structure View
0:12 Overview of Structure View
0:20 Stackup Editor / Structure View layout
0:33 Stackup / Structure alignment
0:50 Navigating in Structure View
1:10 Selecting structures
2:00 Structure View in detail
2:23 Interacting with the Controlled Impedance tab
2:45 Filtering structures by layer
3:00 Altering the view of the structures
3:33 Exporting Structure View graphics
3:53 Grid View / Proprortional View
4:40 Summary
