IP Probe Footprints

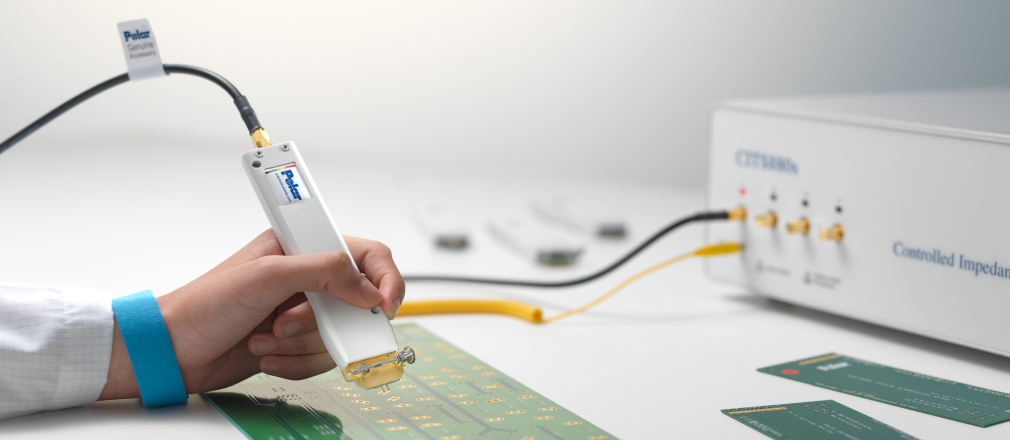

Polar IPS probes are designed for both coupon and on board test with the CITS880s, IPE probes are cost effective ergonomic probes for legacy CITS models.

Preferred probe types

Note: The following probe types are preferred for the CITS880s: CPB001, CPB002, CPB270, CPB272, CPB274, CPB275.

The following probe types are preferred for legacy CITS models: IP50/0.1", IP50/0.14", ACC270, ACC272, ACC274, ACC275

Only preferred styles will be available ex stock.

 Preferred probes
Non-preferred probes
Precision variable pitch probes
Groundless differential probes

Order codes – by part number

Order codes are found by selecting the appropriate footprint, then choosing the appropriate probe family – IPS/IPDS for CITS880s and IPE/IPDE for legacy CITS.

The IPS (single ended), IPDS (differential) and GDPS (groundless differential) probes for on board testing with the CITS880s are clearly identified with blue resist on the probe head, green coloured resist signifies the IPE (single ended) and IPDE (differential) series for legacy CITS.
 Preferred probes
Top
Pinout Description Part No

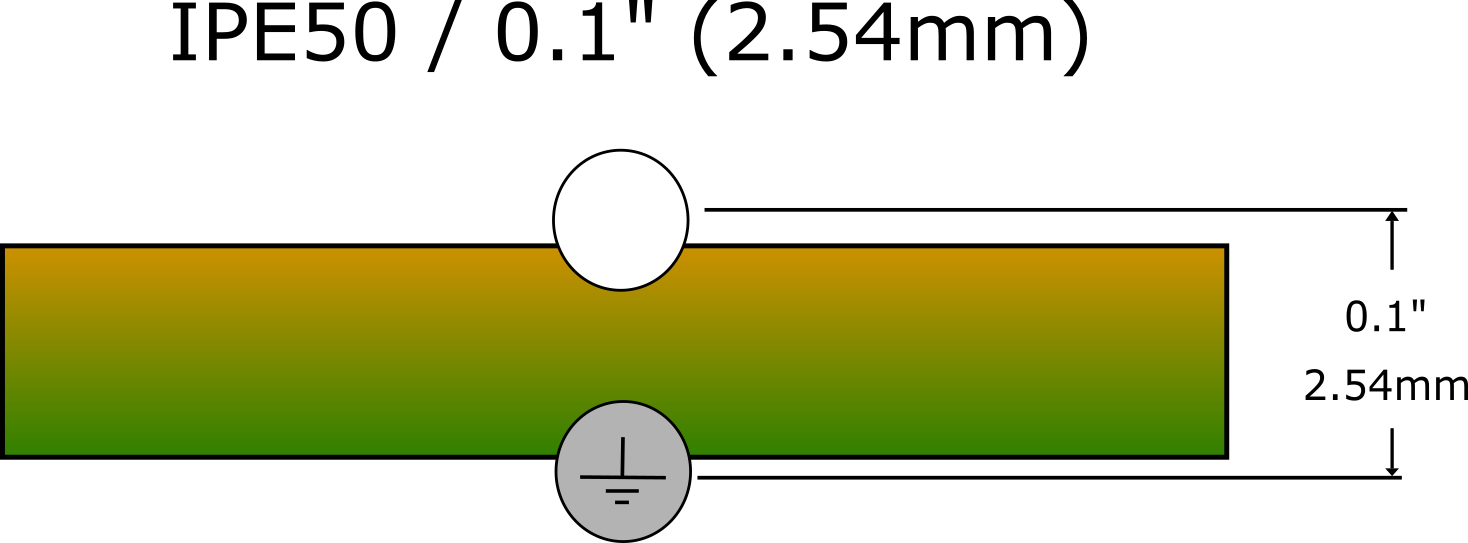

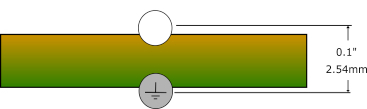

IPS50/0.1" Probe for coupon and on board test with CITS880s

IPE50/0.1" Coupon test probe for legacy CITS

CPB001

IPE50/0.1

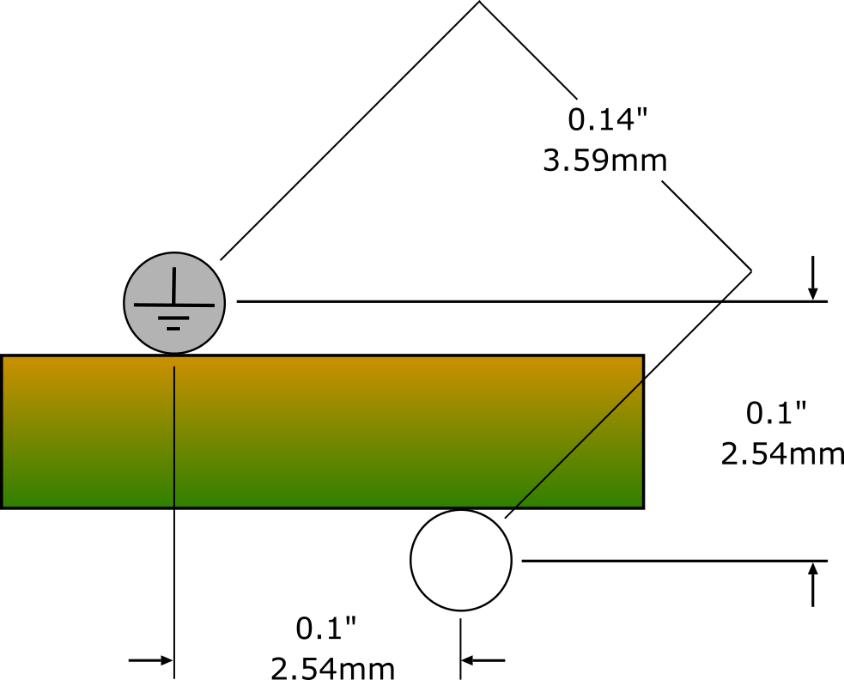

IPS50/0.14" Probe for coupon and on board test with CITS880s

IPE50/0.14" Coupon test probe for legacy CITS

CPB002

IPE50/0.14

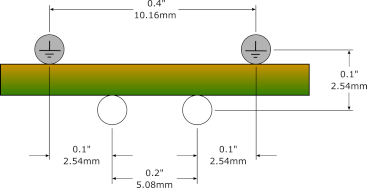

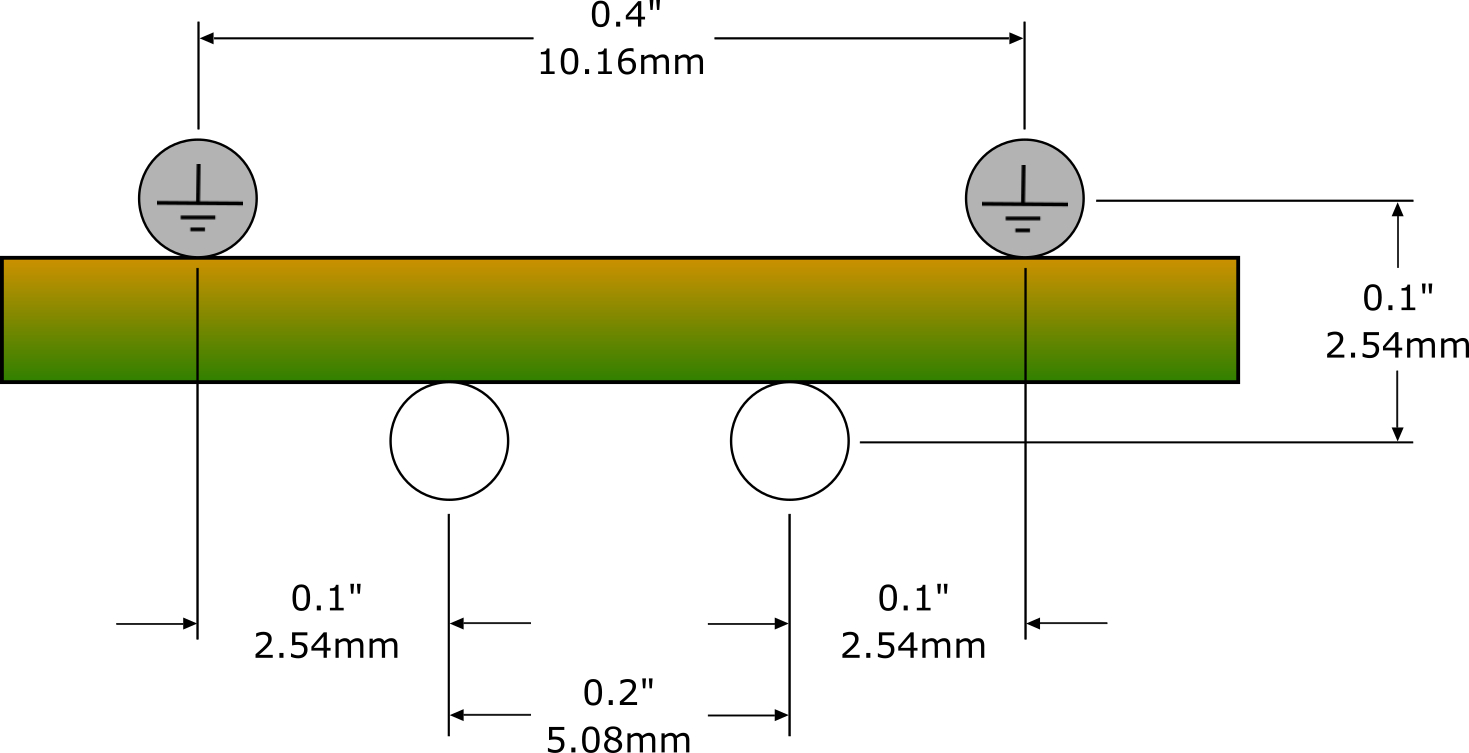

IPDS100/0.4" Probe for coupon and on board test with CITS880s

IPDE100/0.4" Coupon test probe for legacy CITS

CPB270

ACC270

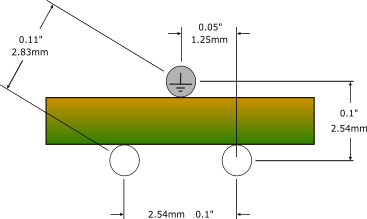

IPDS100/0.1" 3 pin probe for coupon and on board test with CITS880s

IPDE100/0.1" 3 pin Coupon test probe for legacy CITS

CPB272

ACC272

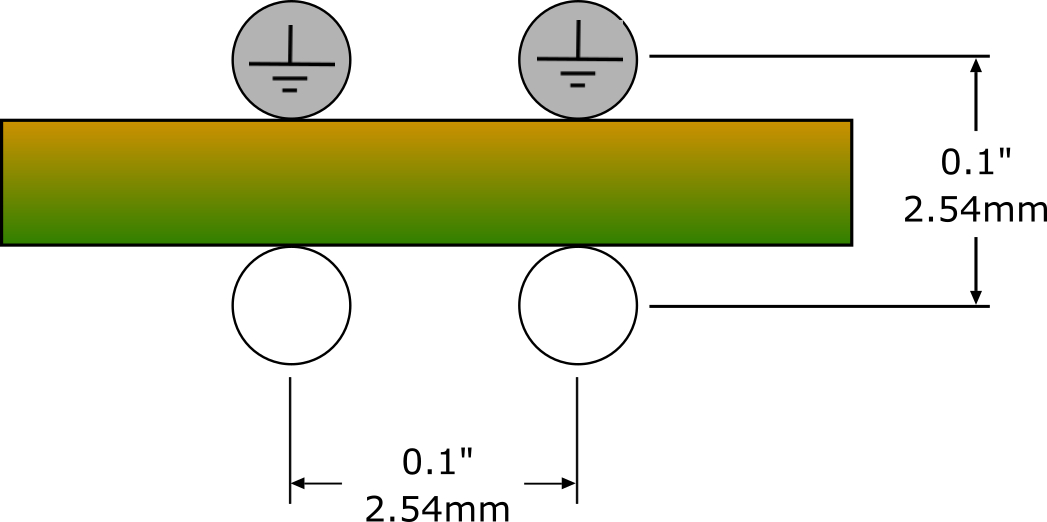

IPDS100/0.1" 4 pin probe for coupon and on board test with CITS880s (square)

IPDE100/0.1" 4 pin coupon test probe for legacy CITS (square)

CPB274

ACC274

IPDS100/0.2" 4 pin probe for coupon and on board test with CITS880s

IPDE100/0.2" 4 pin coupon test probe for legacy CITS

CPB275

ACC275
 Non-preferred probes
Top
Pinout Description Part No

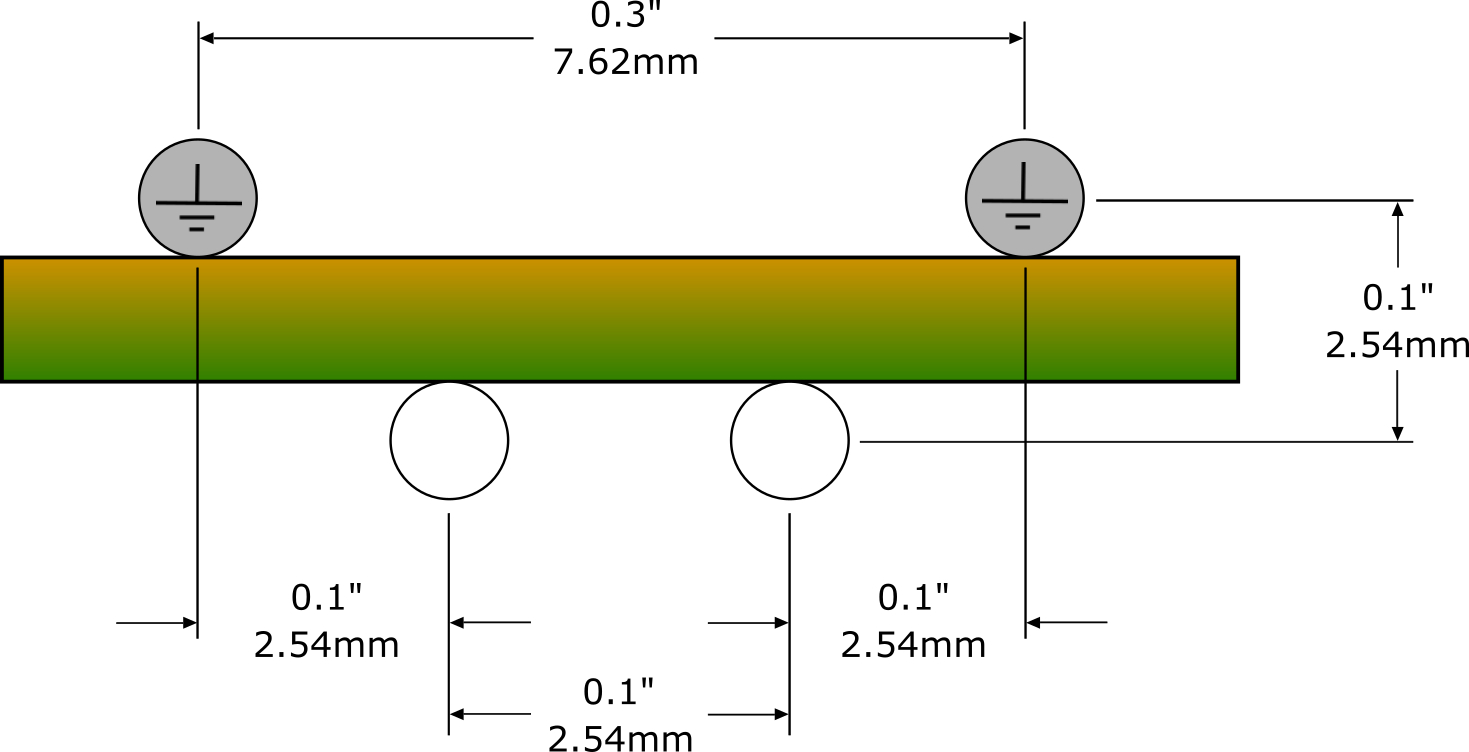

IPDS100/0.1" grid

IPDE100/0.1" grid

CPB271

ACC271

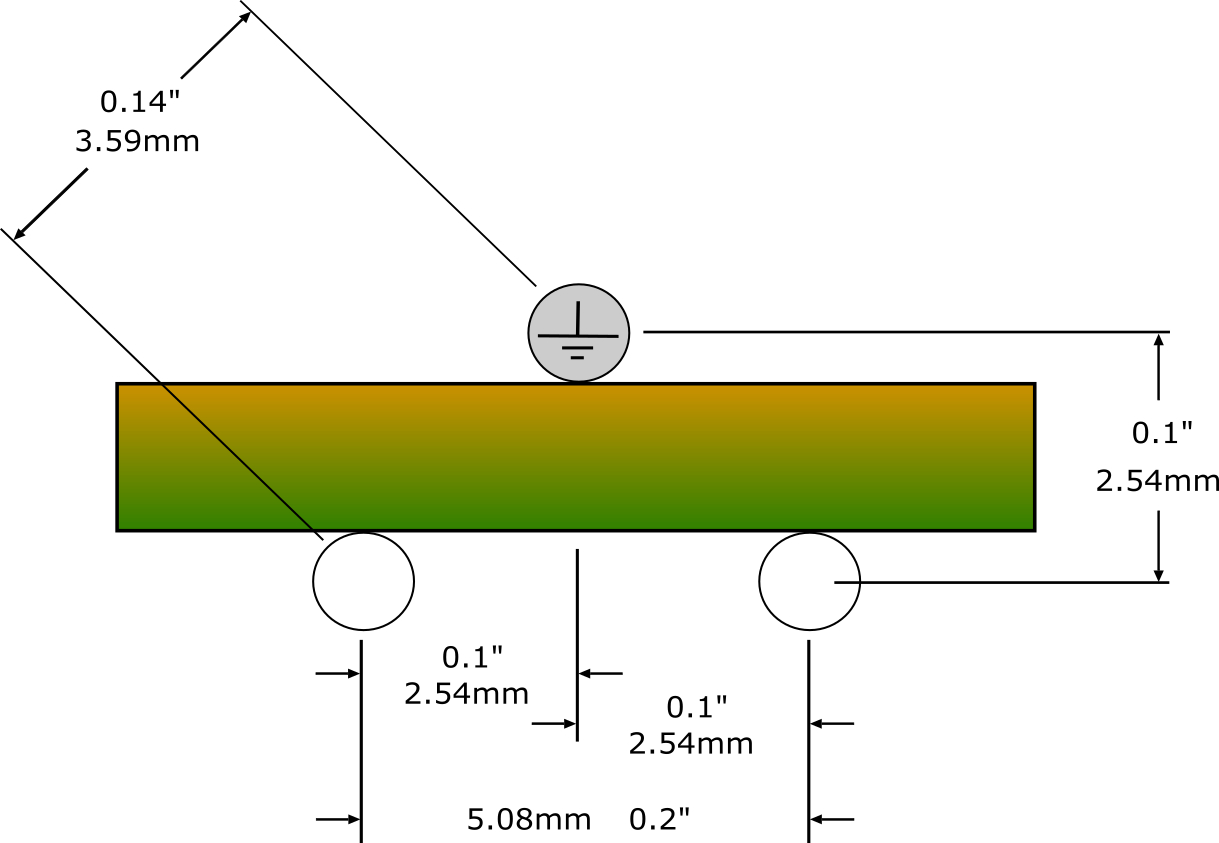

IPDS100/0.2" 3 pin

IPDE100/0.2" 3 pin

CPB273

ACC273

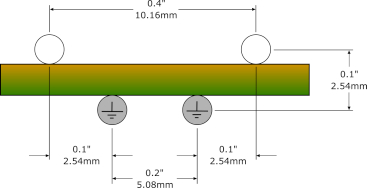

IPDS100/0.4" 4 pin (0.4" signal pin spacing)

IPDE100/0.4" 4 pin (0.4" signal pin spacing)

CPB276

ACC276

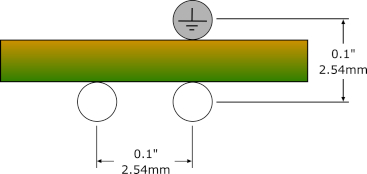

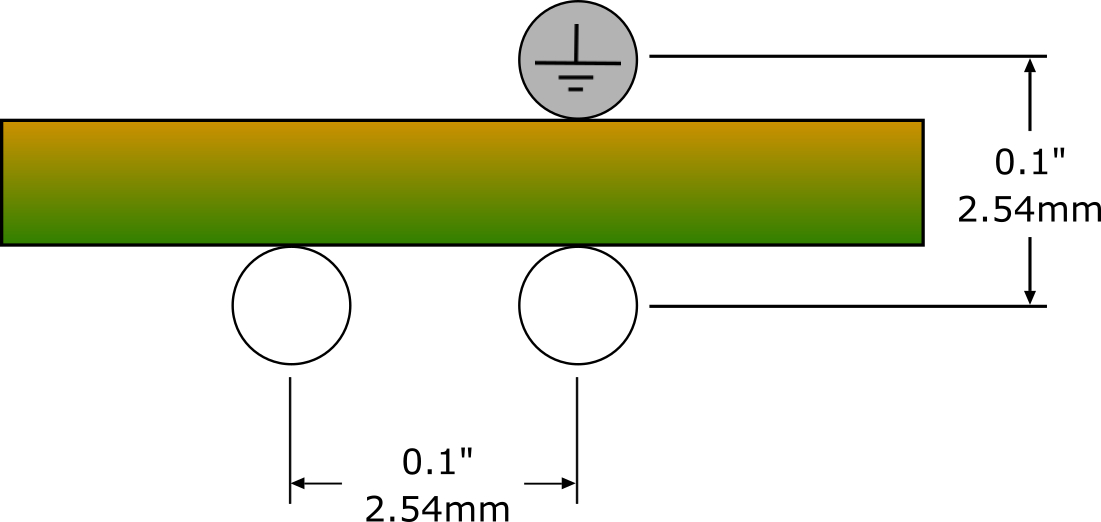

IPDS100/ 3 pin "L"

IPDE100/ 3 pin "L"

CPB277

ACC277

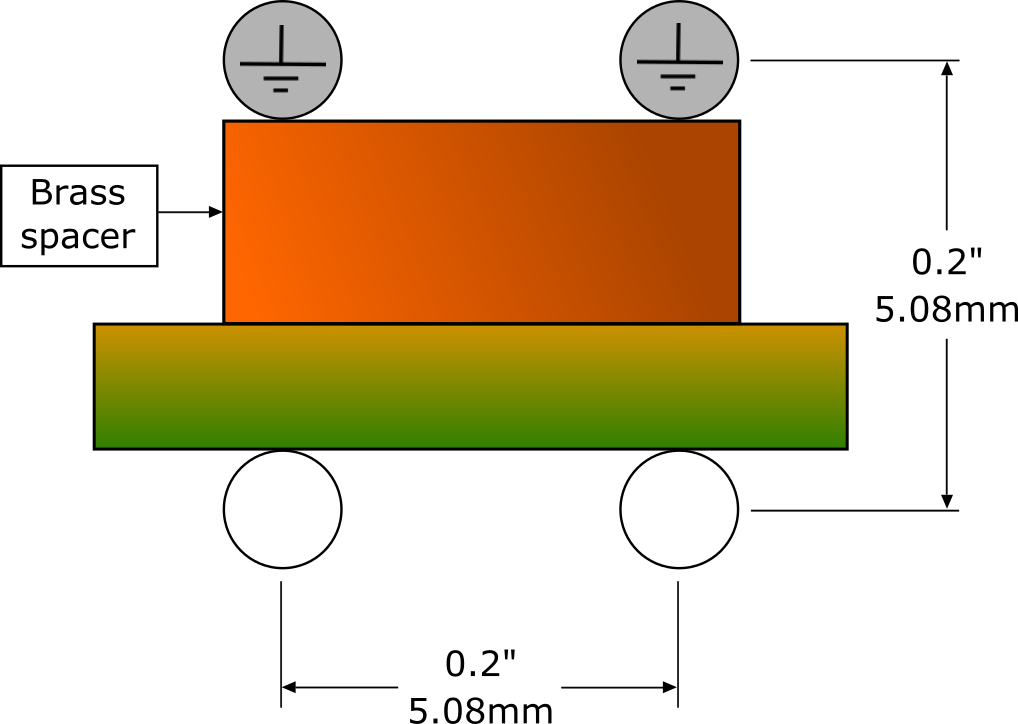

IPDS100/0.2" 4 pin square

IPDE100/0.2" 4 pin square

CPB281

ACC281

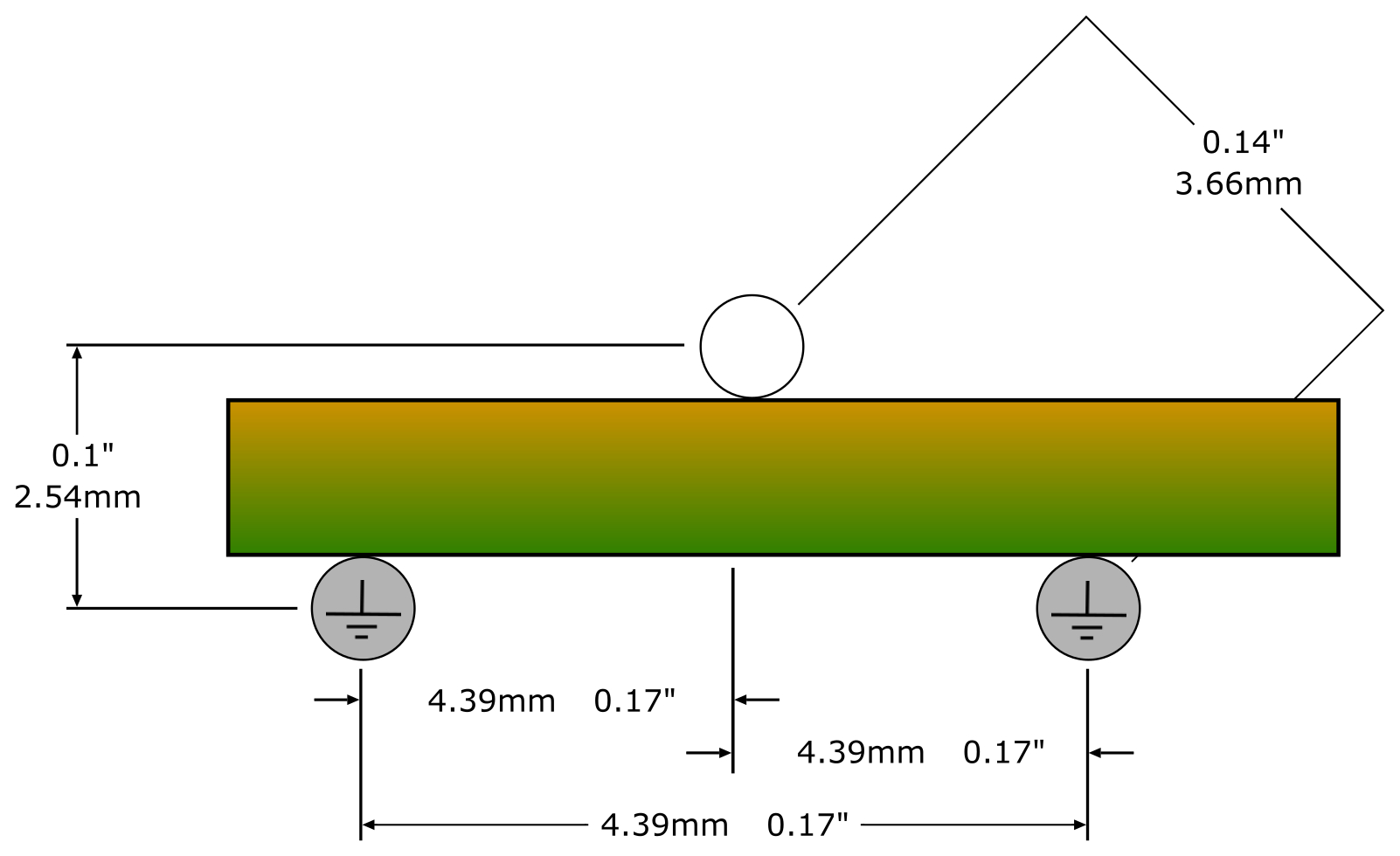

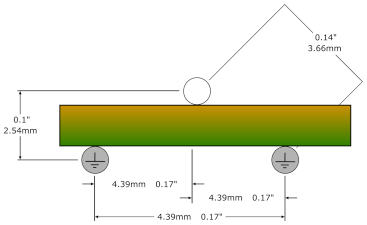

IPS50/0.14" 2 pin ground

IPE50/0.14" 2 pin ground

CPB287

ACC287

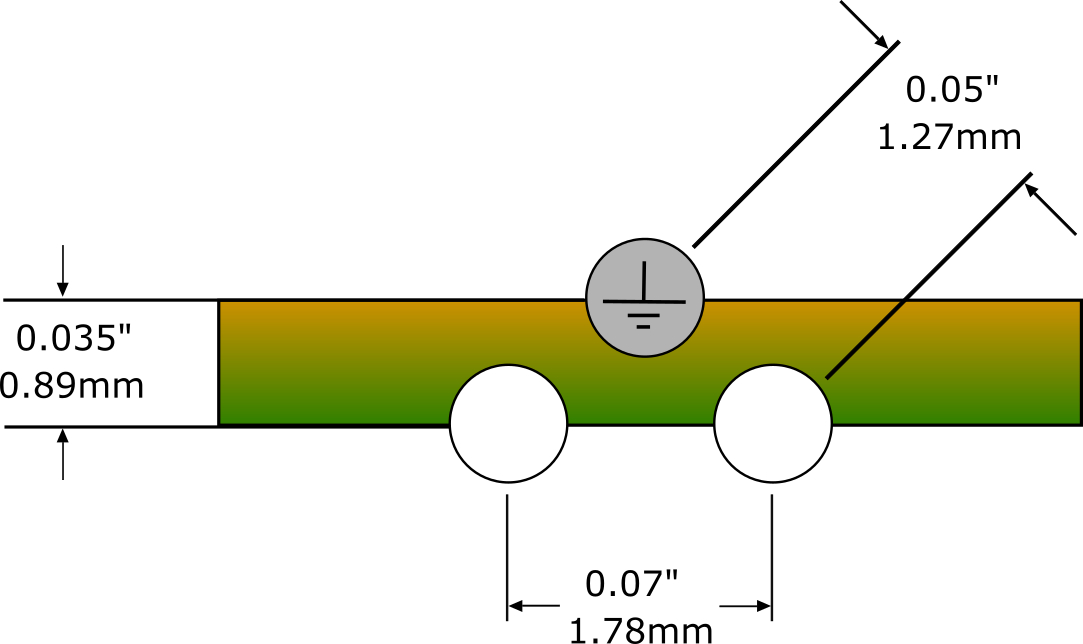

IPDS100/0.05" 3 pin

IPDE100/0.05" 3 pin

CPB288

ACC288

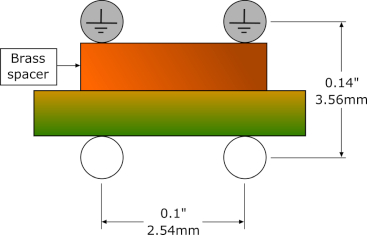

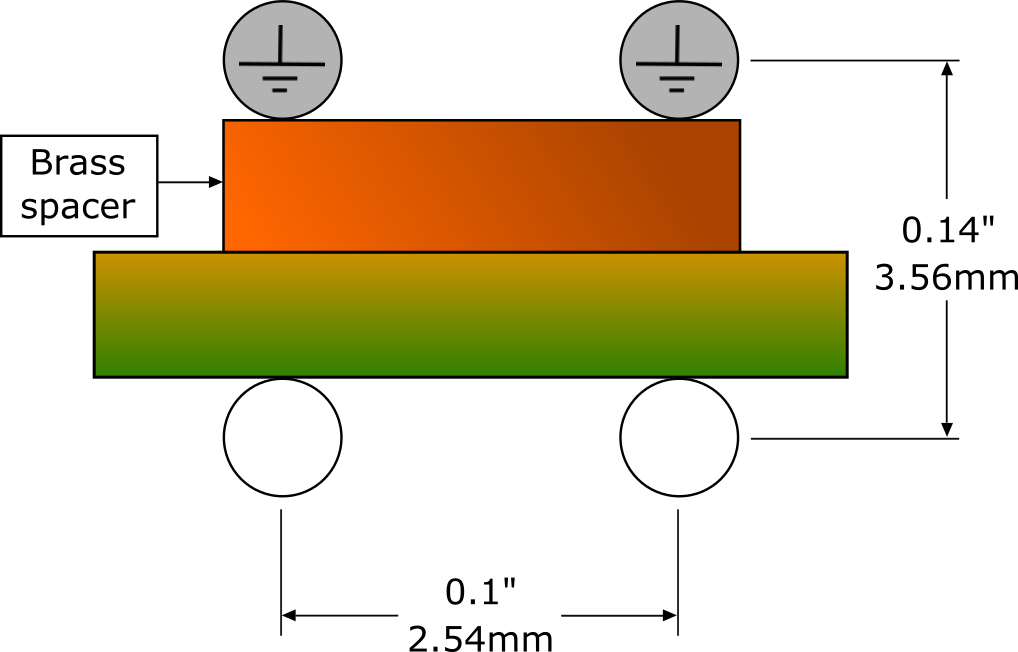

IPDS100/0.1" x 0.14"

IPDE100/0.1" x 0.14"

CPB289

ACC289

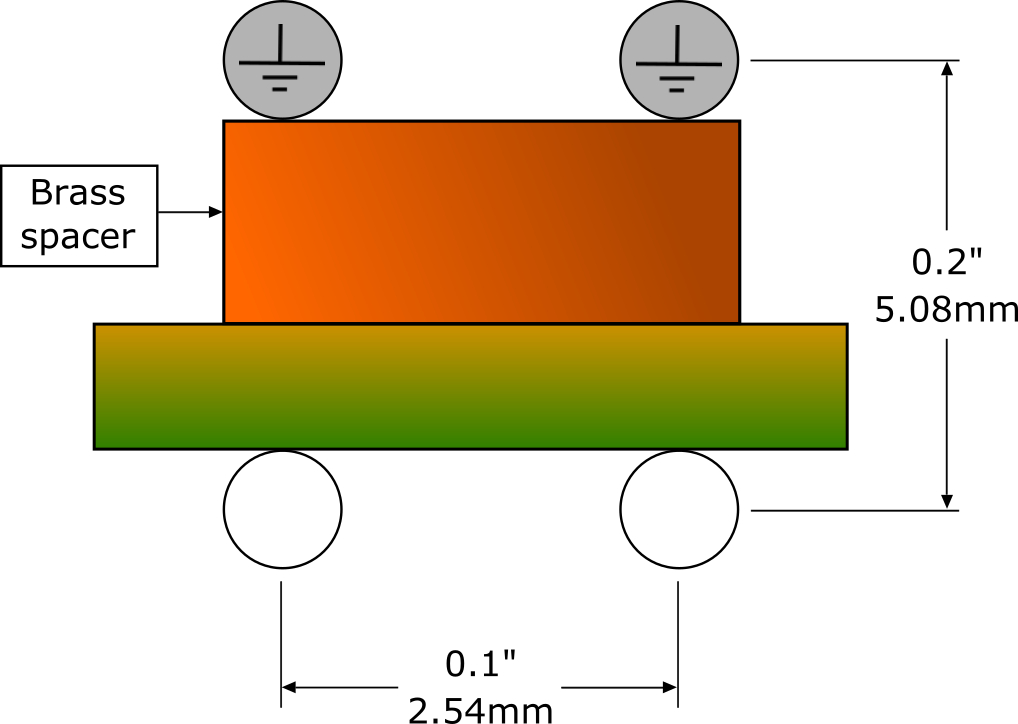

IPDS100/0.1" x 0.2"

IPDE100/0.1" x 0.2"

CPB291

ACC291

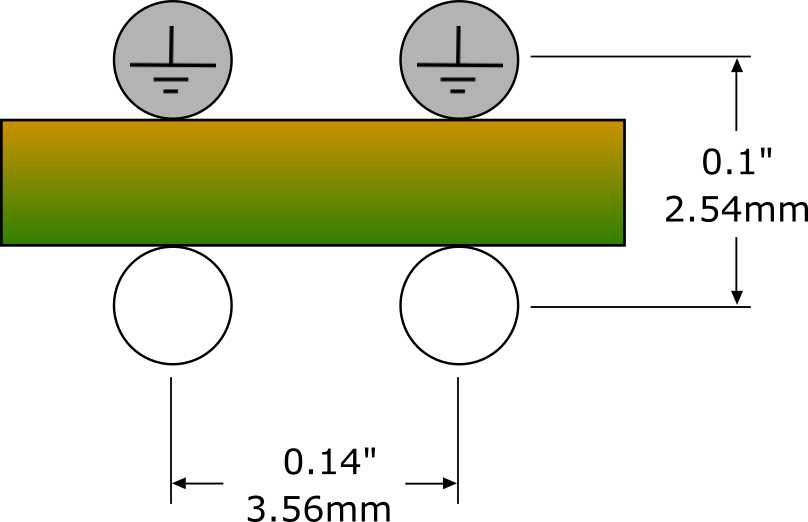

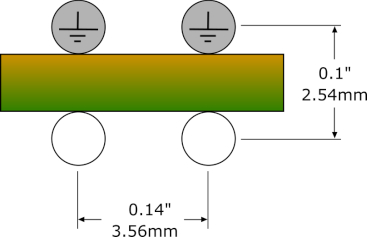

IPDS100/0.14" x 0.1"

IPDE100/0.14" x 0.1"

CPB300

ACC300

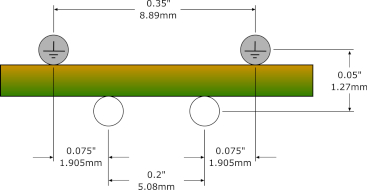

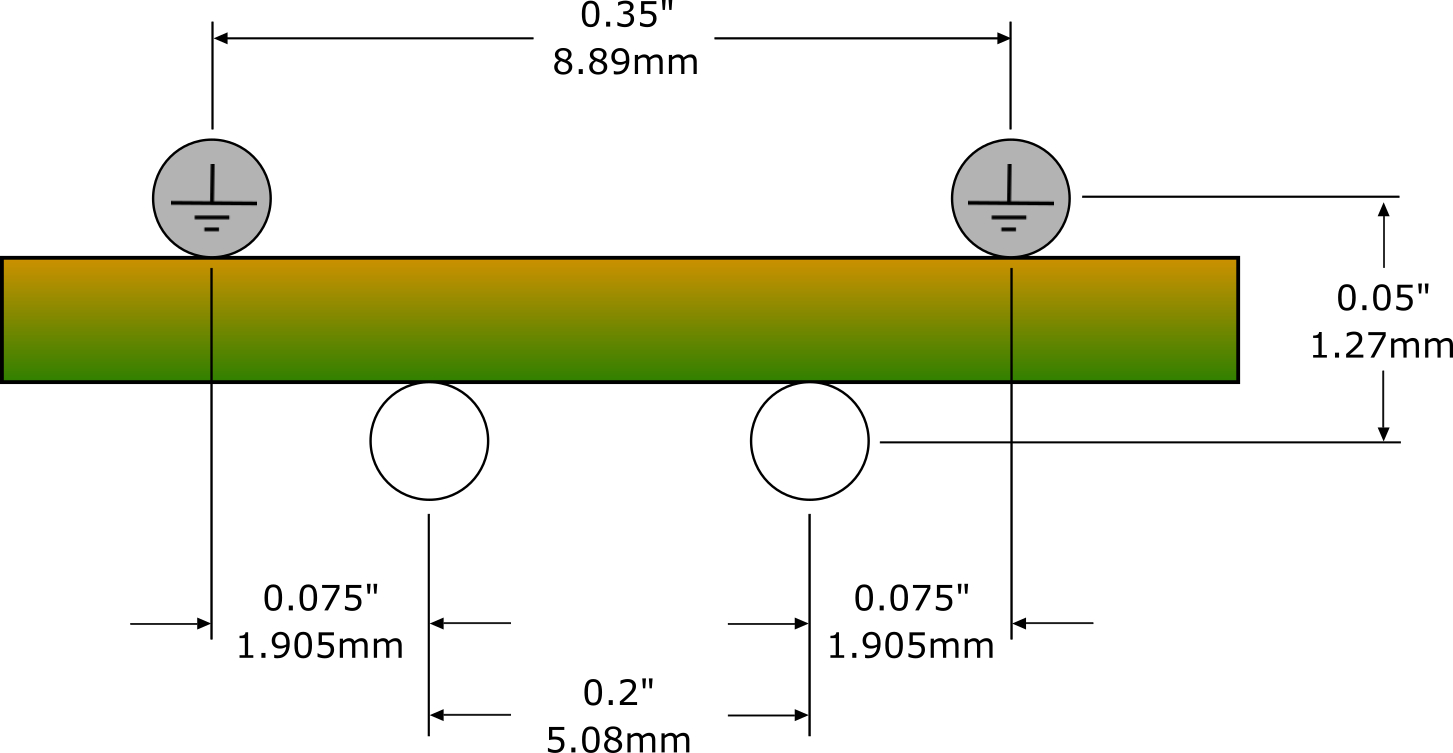

IPDS100/0.2" x 0.05"

IPDE100/0.2" x 0.05"

CPB306

ACC306

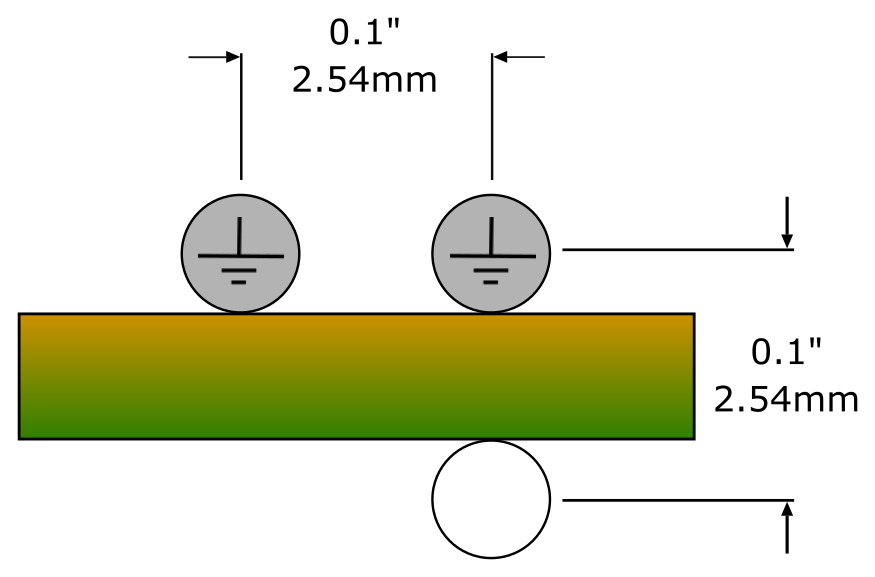

IPE50/0.1" 3 Pin

IPE50/0.1" 3 Pin

CPB308

ACC308

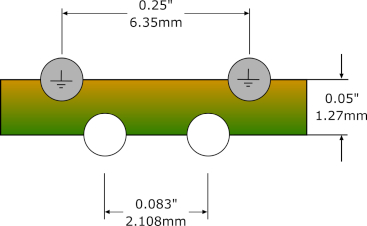

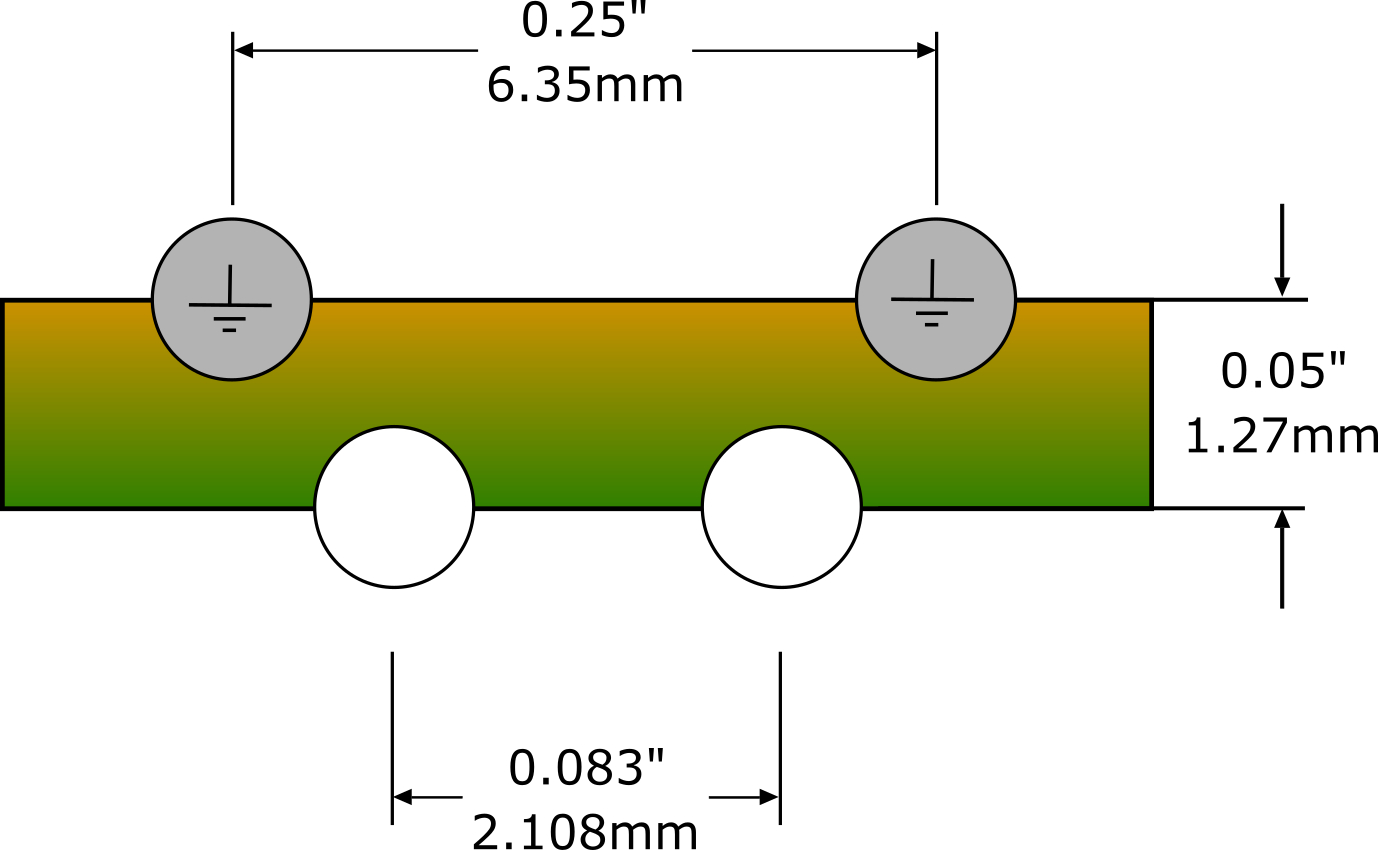

IPDS100/0.083" x 0.05"

IPDE100/0.083" x 0.05"

CPB325

ACC325

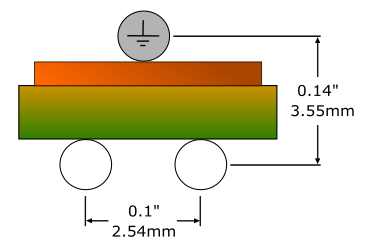

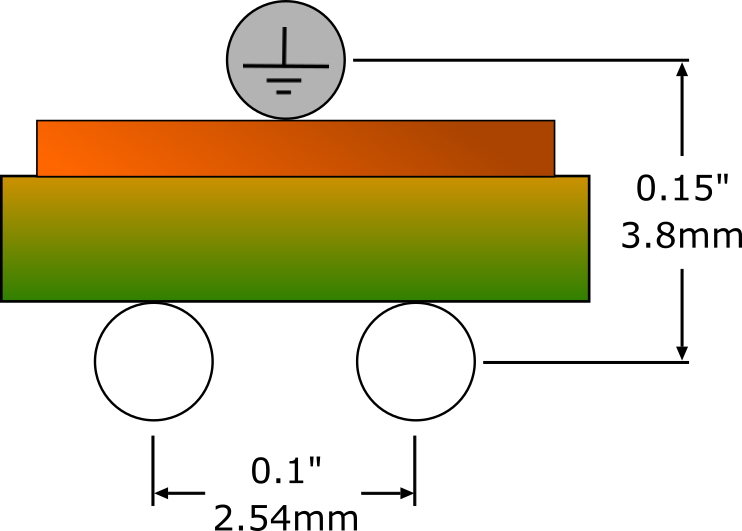

IPDS100/0.14" x 0.1" 3 pin

IPDE100/0.14" x 0.1" 3 pin

CPB342

ACC342

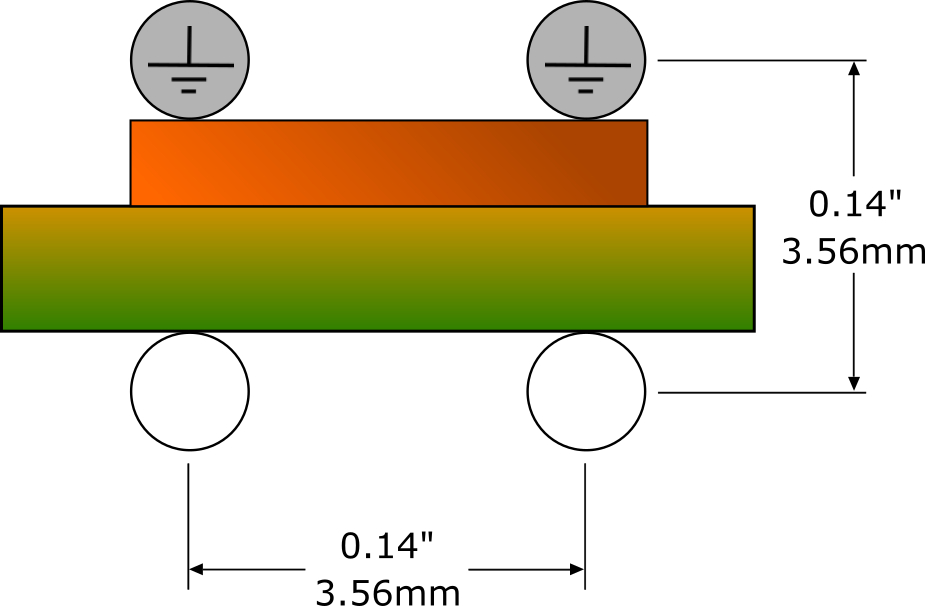

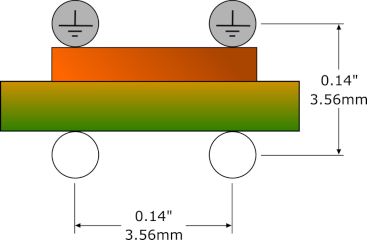

IPDS100/0.14" x 0.14"

IPDE100/0.14" x 0.14"

CPB348

ACC348

IPDS100/0.1" x 0.325"

IPDE100/0.1" x 0.325"

CPB363

ACC363

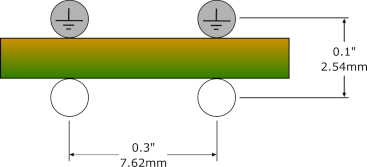

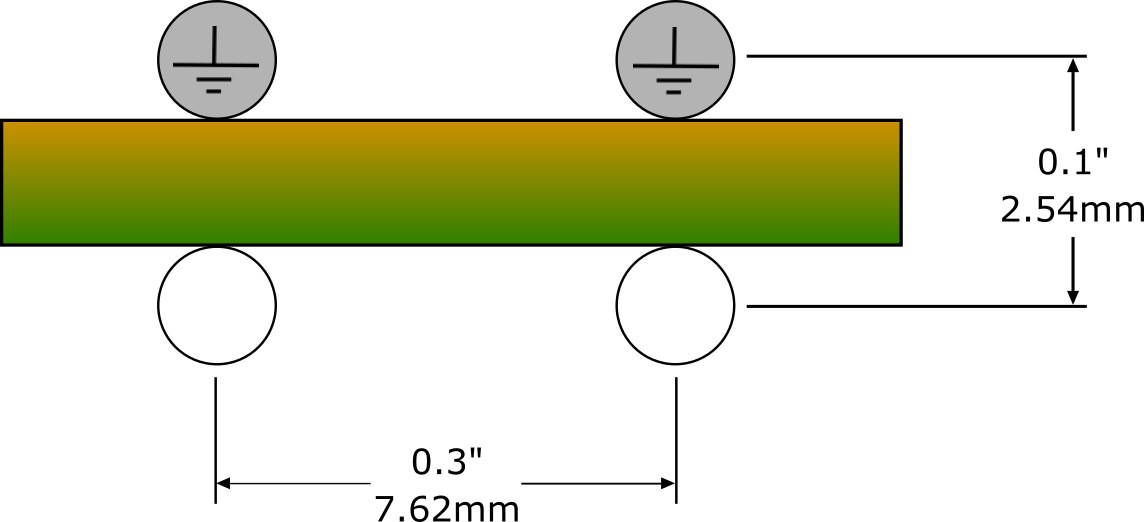

IPDS100/0.3" x 0.1"

IPDE100/0.3" x 0.1"

CPB364

ACC364

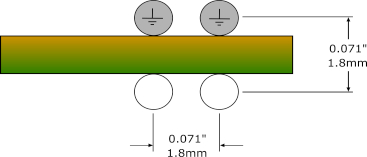

IPDS100/0.071" 4 pin square

IPDE100/0.071" 4 pin square

CPB368

ACC368

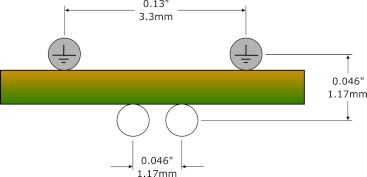

IPDS100/0.046" x 0.13"

IPDE100/0.046" x 0.13"

CPB369

ACC369

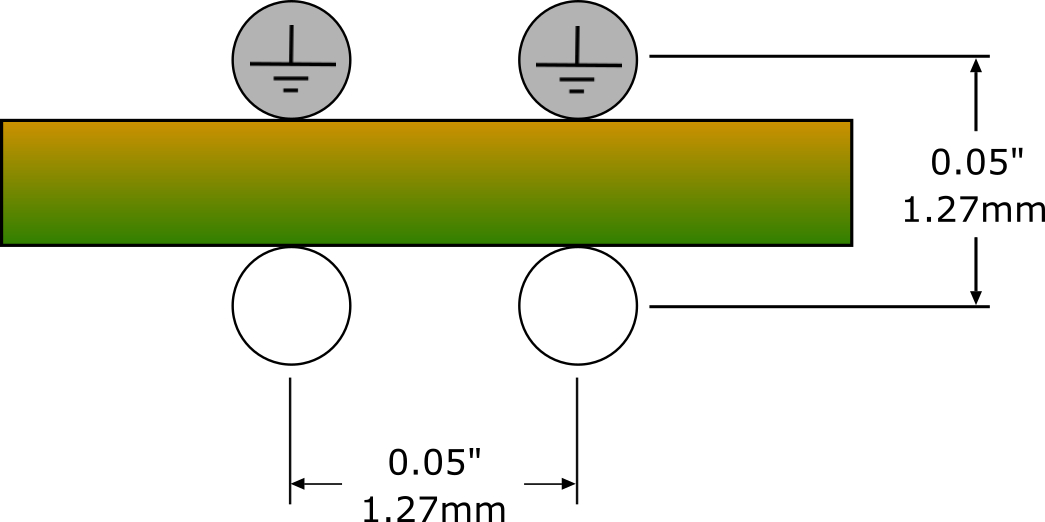

IPDS100/0.05" 4 pin square

IPDE100/0.05" 4 pin square

CPB370

ACC370

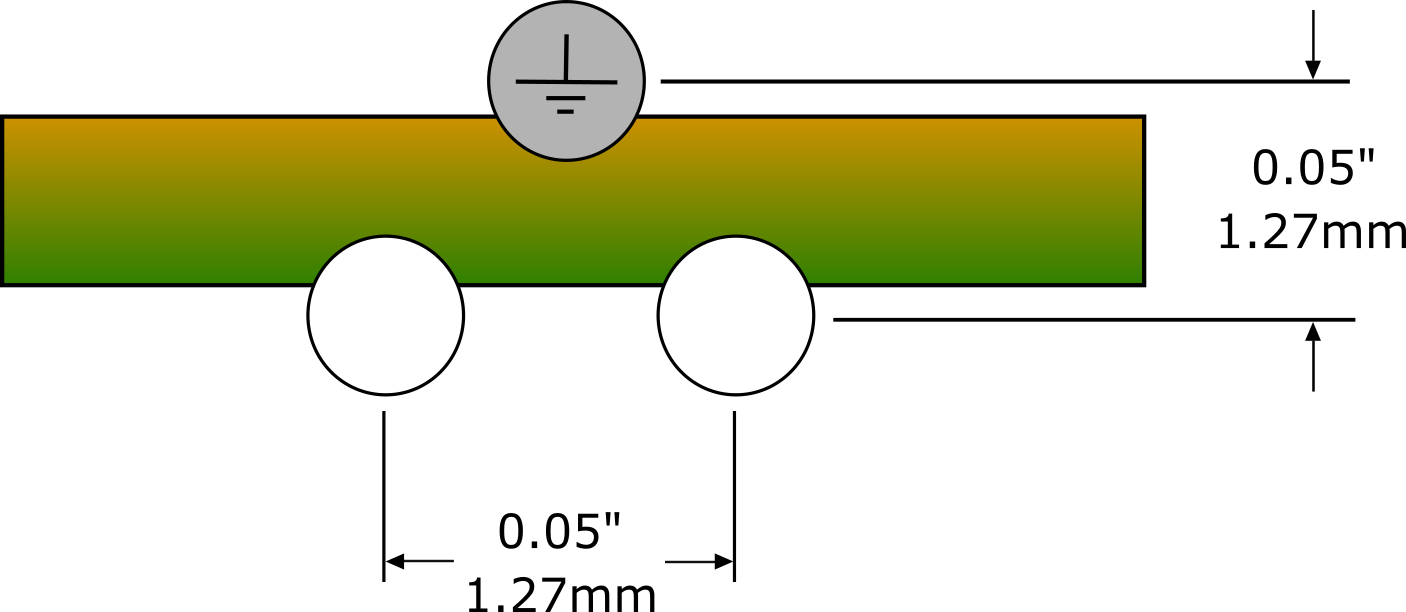

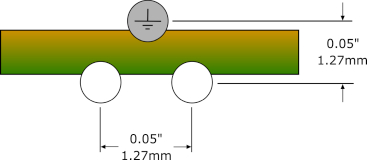

IPDs100/0.05" 3 pin

IPDE100/0.05" 3 pin

CPB377

ACC377

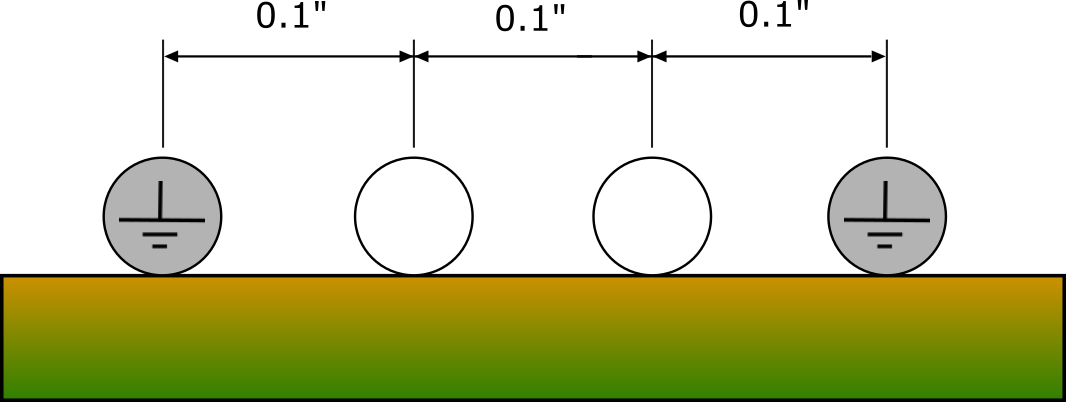

IPDS100/0.1" / 0.1" / 0.1" in-line

IPDE100/0.1" / 0.1" / 0.1" in-line

CPB378

ACC378

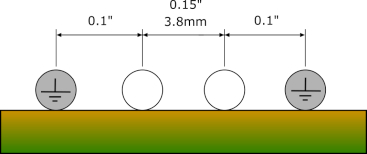

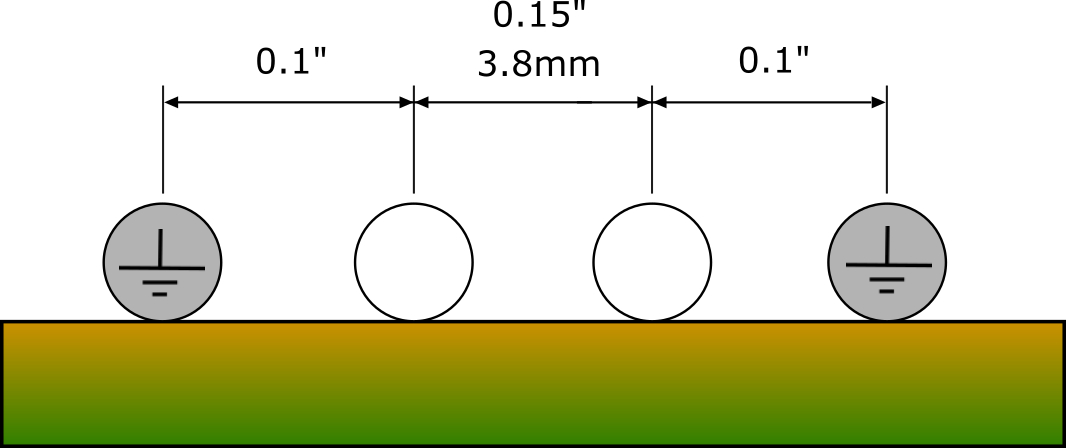

IPDS100/0.1" / 0.15" / 0.1" in-line

IPDE100/0.1" / 0.15" / 0.1" in-line

CPB382

ACC382

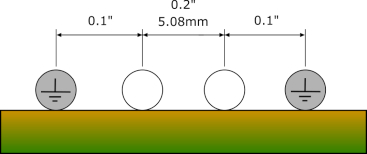

IPDS100/0.1" / 0.2" / 0.1" in-line

IPDE100/0.1" / 0.2" / 0.1" in-line

CPB384

ACC384

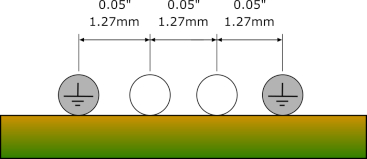

IPDS100/0.05" / 0.05" / 0.05" in-line

IPDE100/0.05" / 0.05" / 0.05" in-line

CPB385

ACC385

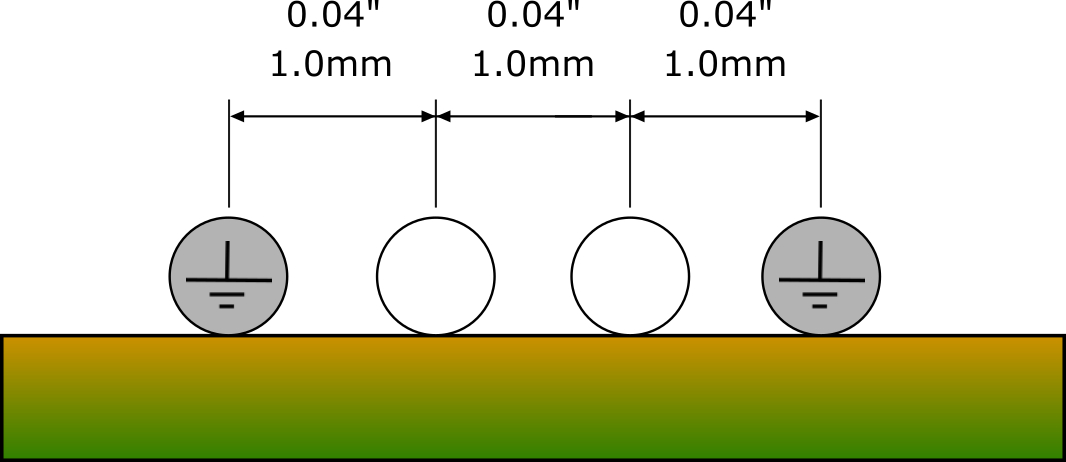

IPDS100/0.04" / 0.04" / 0.04" in-line

IPDE100/0.04" / 0.04" / 0.04" in-line

CPB389

ACC389

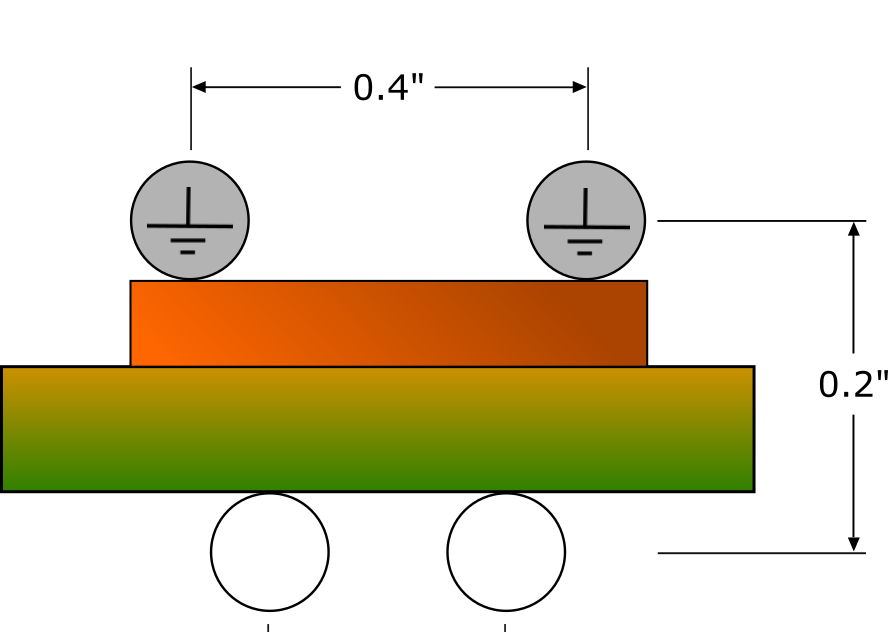

IPDS100/0.2" / 0.4" / 0.2"

IPDE100/0.2" / 0.4" / 0.2"

CPB392

ACC392

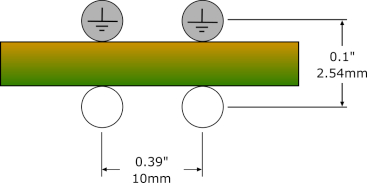

IPDS100/0.39" x 0.1"

IPDE100/0.39" x 0.1"

CPB395

ACC395

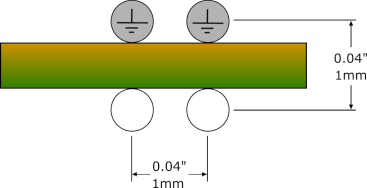

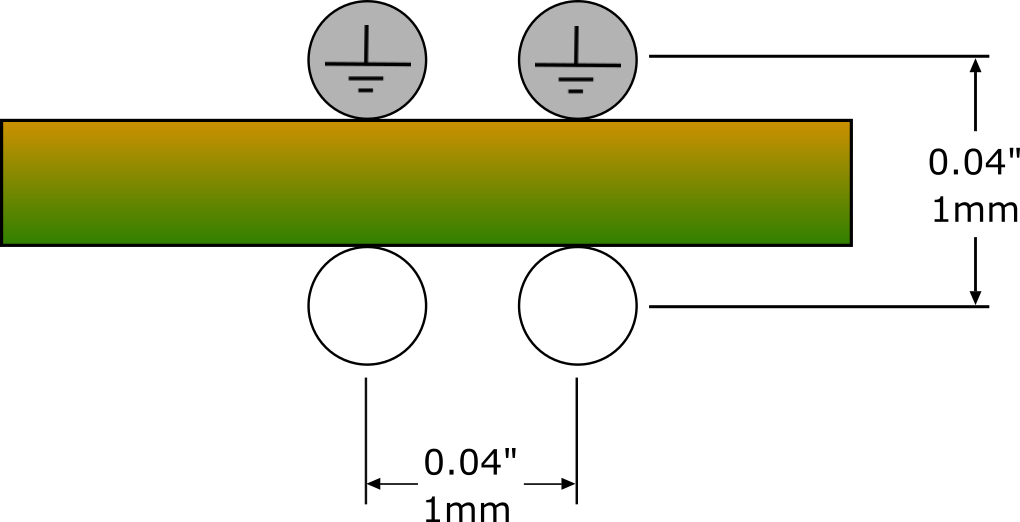

IPDS100/0.04" 4 pin square

IPDE100/0.04" 4 pin square

CPB398

ACC398

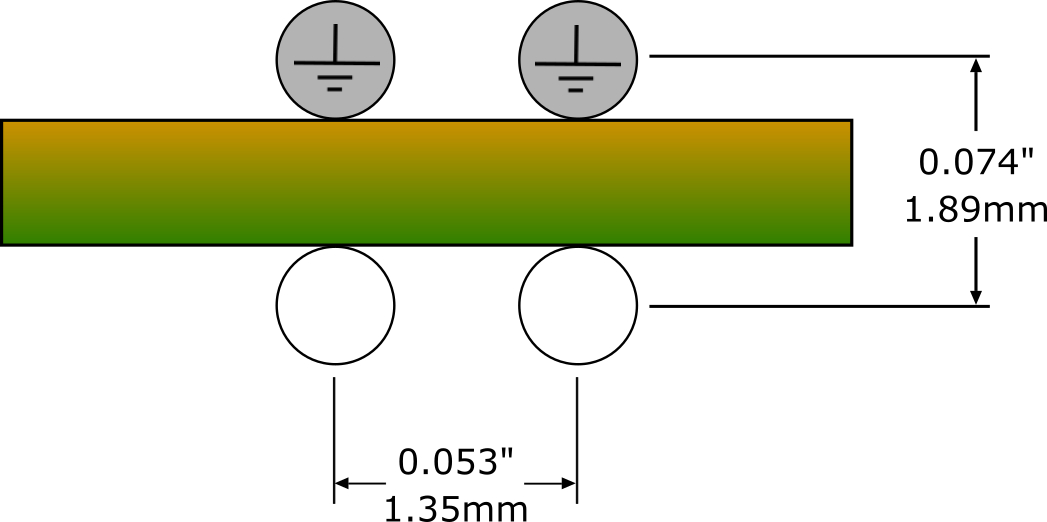

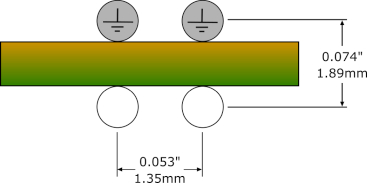

IPDS100/0.053" x 0.074" 4 pin square

IPDE100/0.053" x 0.074" 4 pin square

CPB412

ACC412

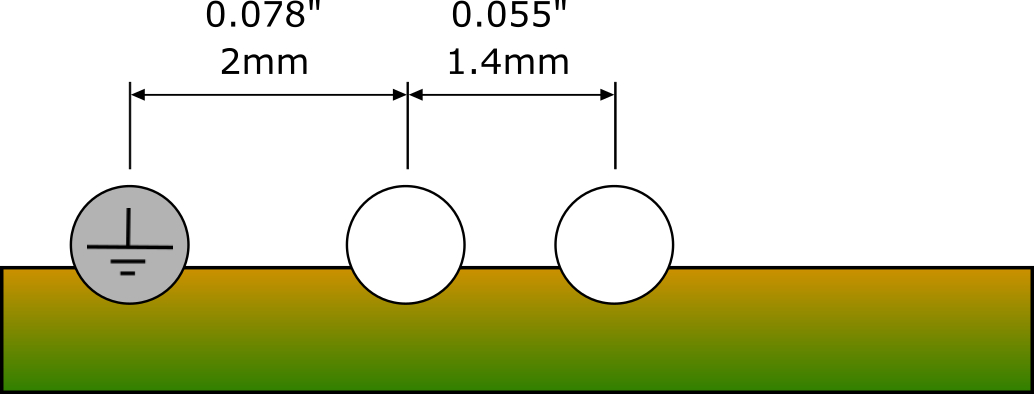

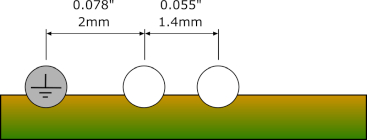

IPDS100/0.055" x 0.079" 3 pin in-line

IPDE100/0.055" x 0.079" 3 pin in-line

CPB413

ACC413

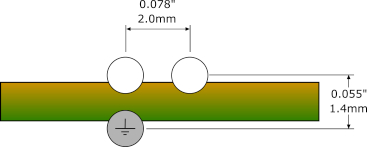

IPDS100/0.055" x 0.078" 3 pin square

IPDE100/0.055" x 0.078" 3 pin square

CPB414

ACC414

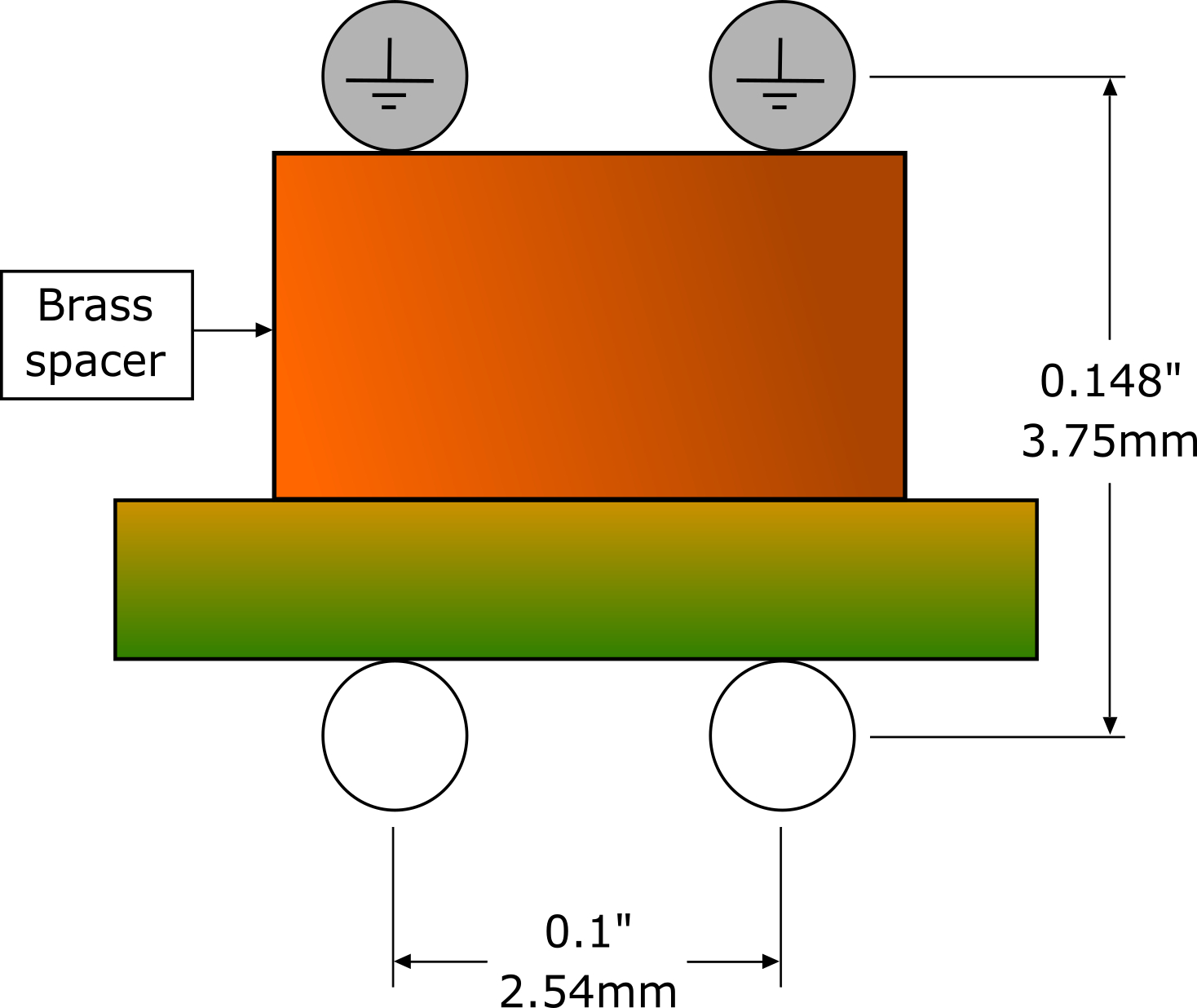

IPDS100/0.1" x 0.148"

IPDE100/0.1" x 0.148"

CPB416

ACC416

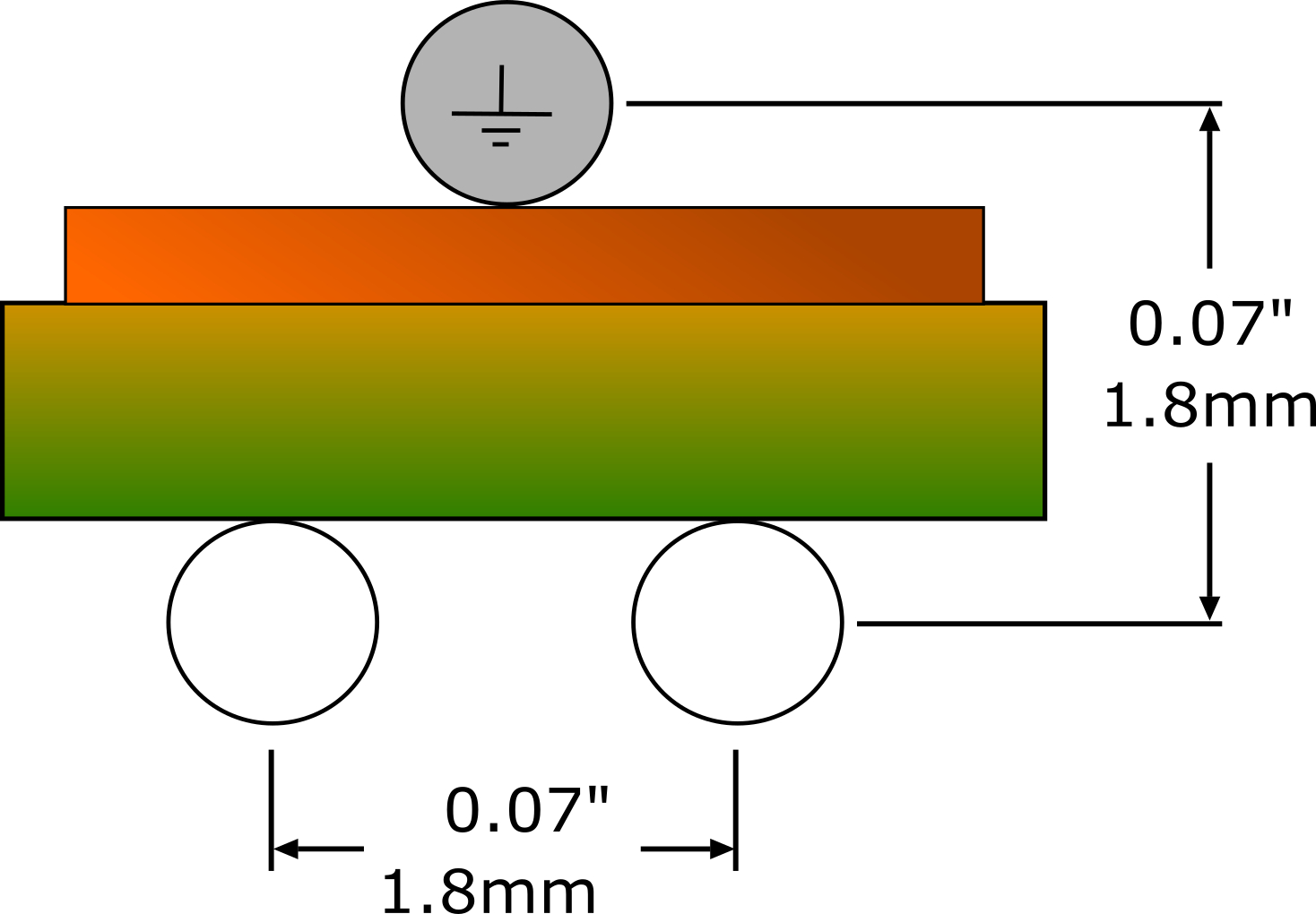

IPDS100/0.07" x 0.07" 3 pin

IPDE100/0.07" x 0.07" 3 pin

CPB417

ACC417
Precision variable pitch probes
Top
Pinout Description Part No

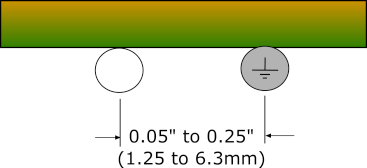

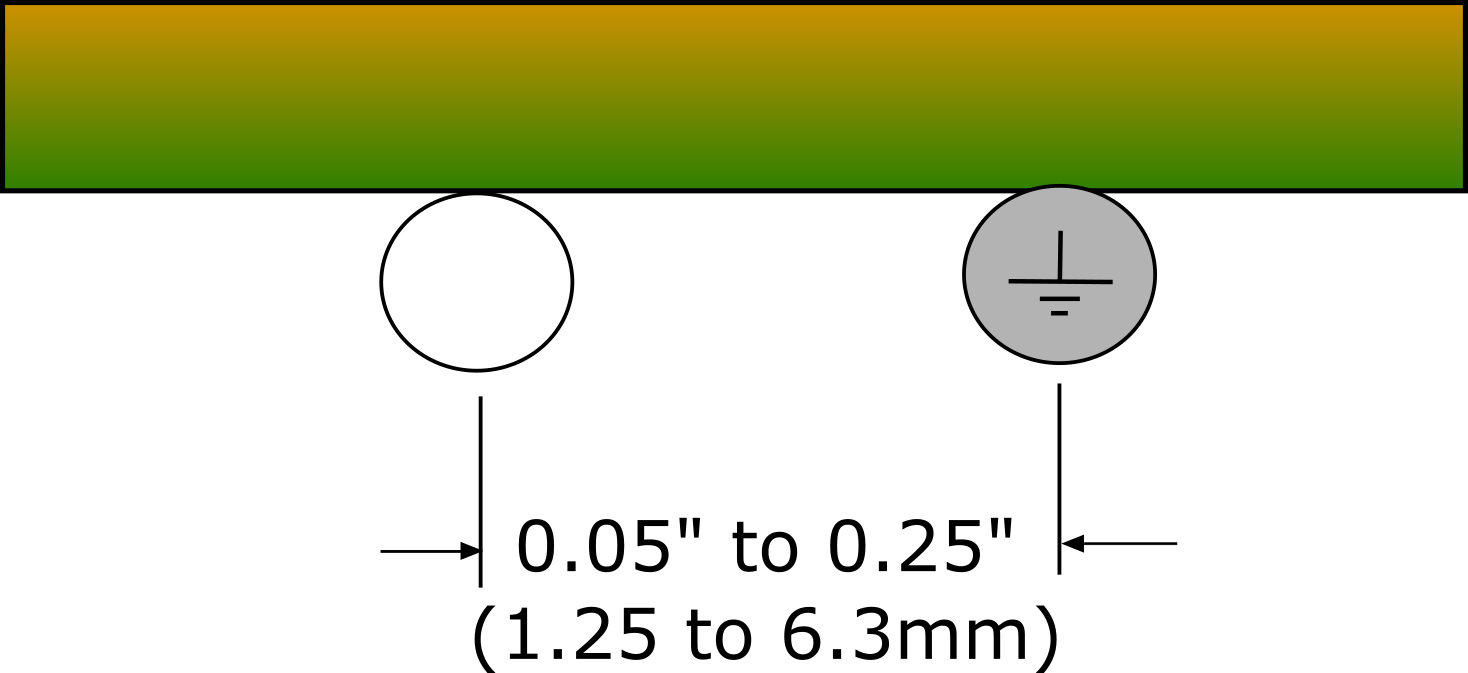

50 Ohm 0.05" – 0.25" variable pitch

CPB506
 Groundless differential probes (for use with CITS880s only)
Top
Pinout Description Part No

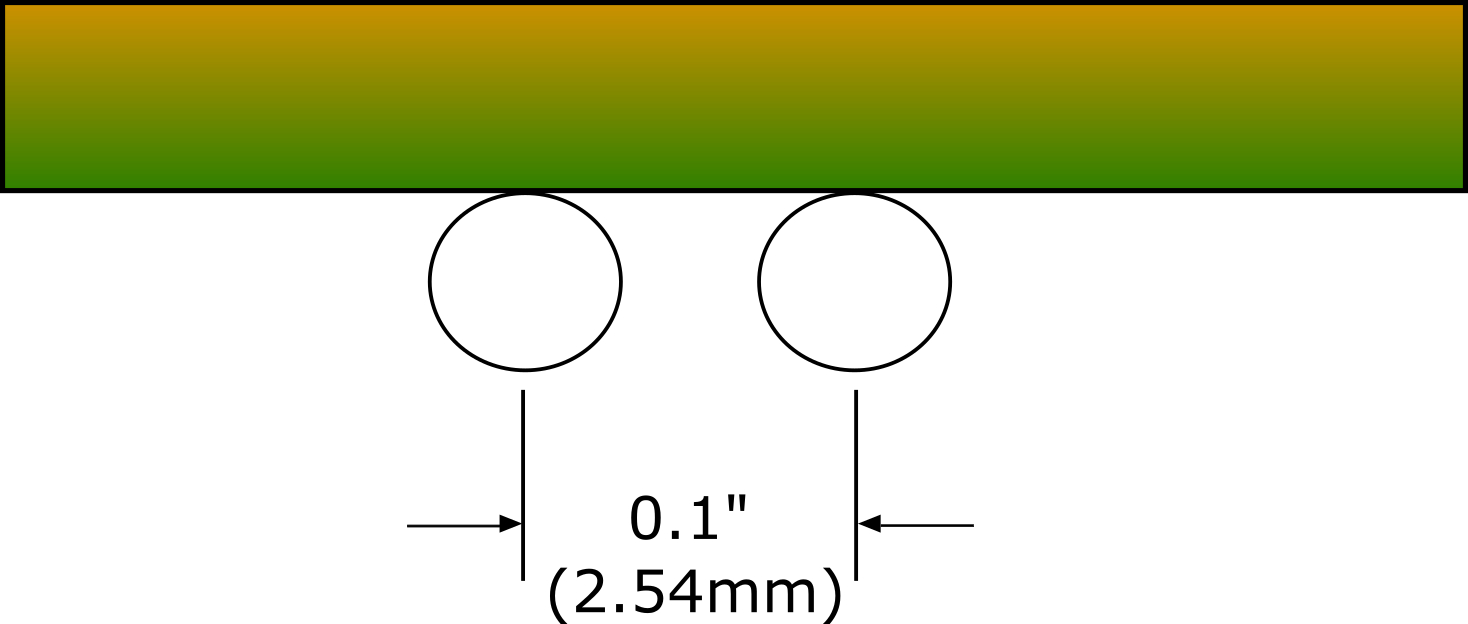

0.1" groundless differential

CPB500

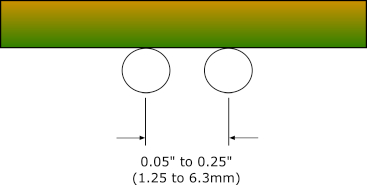

0.05" – 0.25" variable pitch groundless differential

CPB501

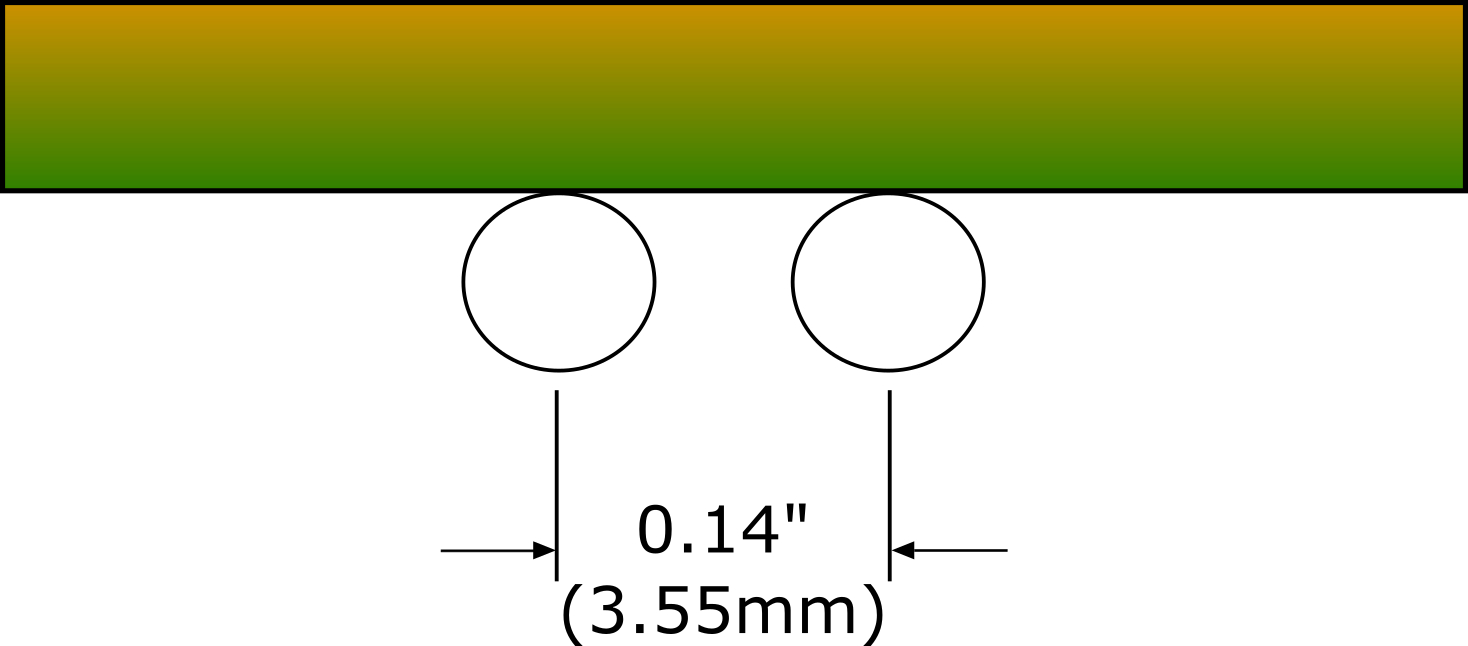

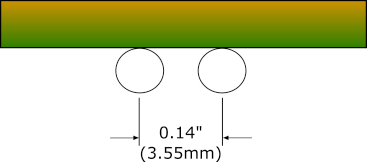

0.14" groundless differential

CPB502

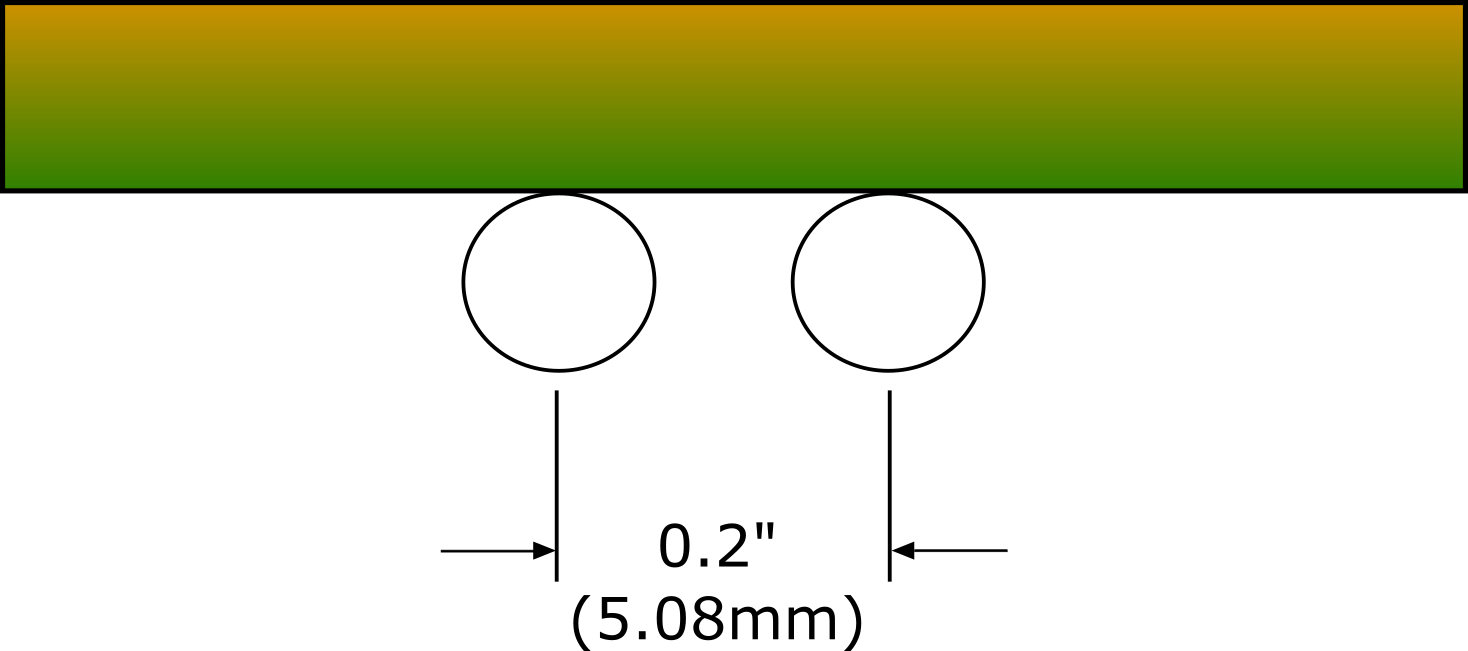

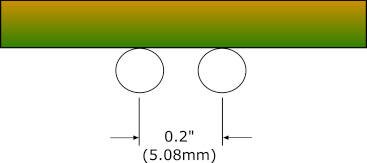

0.2" groundless differential

CPB503

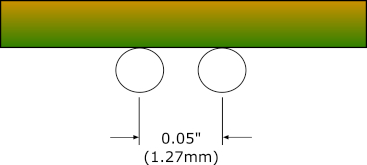

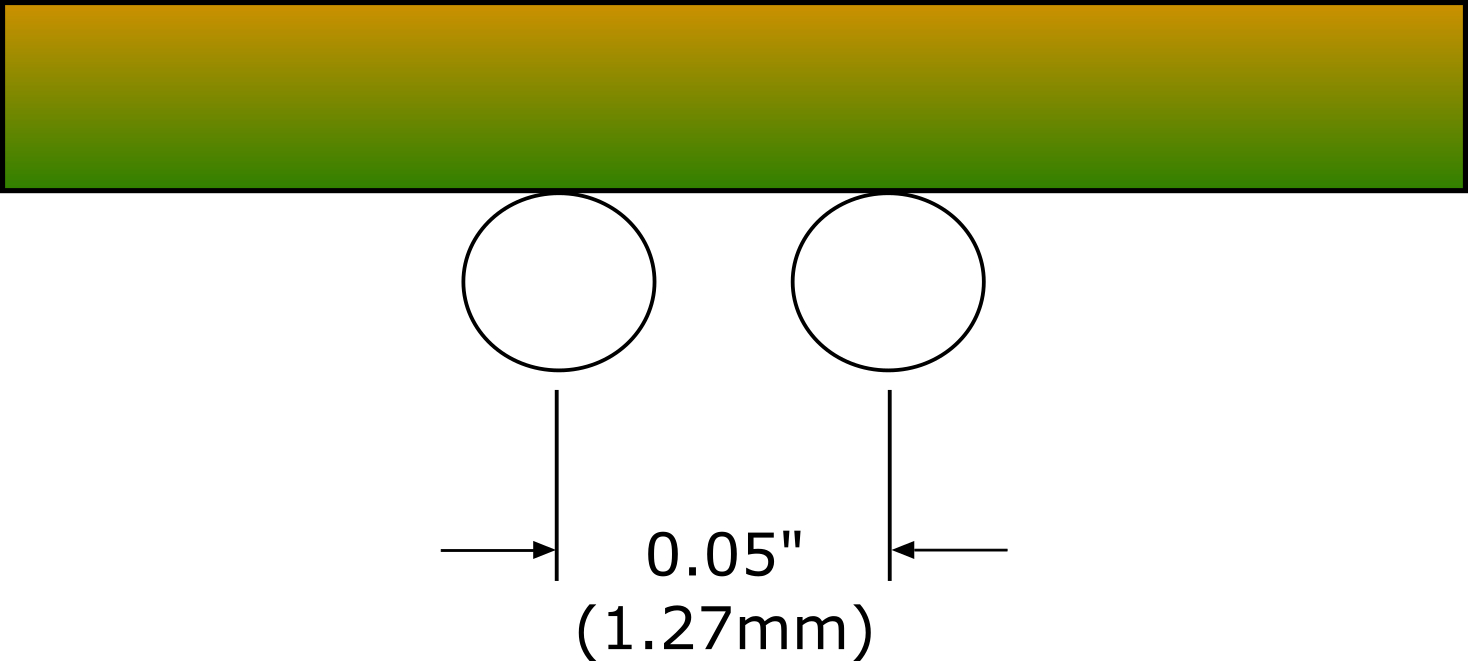

0.05" groundless differential

CPB504

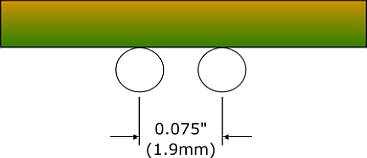

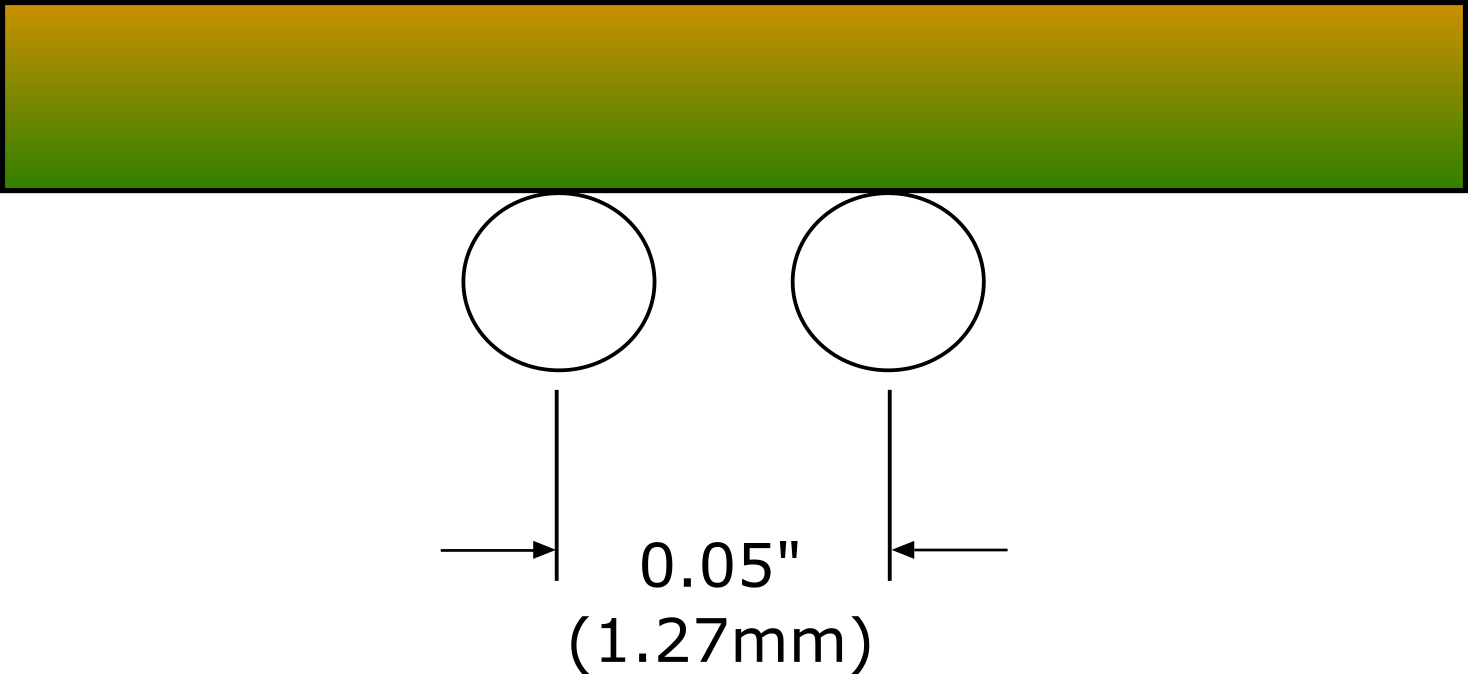

0.075" groundless differential

CPB505

If the footprint or probe you require is not listed above – please contact your local Polar office. Custom probes are available by special order (tooling charges may apply.)
