Click on the configuration from the Structures menu or from the Structures Bar.
Enter the parameter values as described above into the text boxes and press the More… button. For the Standard Interface single ended results are shown below

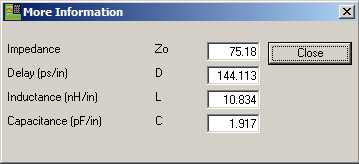

The Si9000 displays the results of propagation delay, inductance and capacitance in the selected units. Press Close to exit.
