Use the Calculation Interface to enter and modify the structure parameters and tolerances, calculate impedance values and goal seek for parameter values for a target impedance.

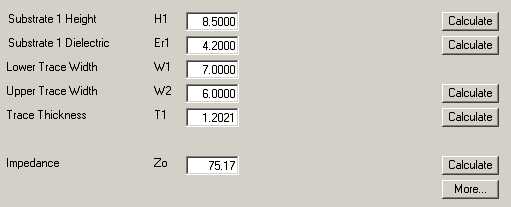

Standard Interface

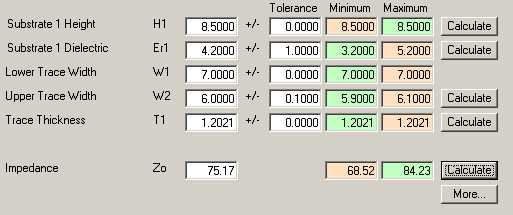

Extended Interface
Use the Extended Interface to apply tolerances to a calculation. The colored text fields indicate which parameter affects the minimum and maximum impedance values; e.g. consider the green colored fields – variations in the minimum value of Er1 affect the maximum value of impedance.
