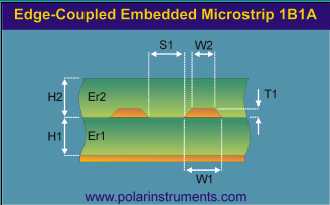

Edge-coupled embedded microstrip with one dielectric below and one above the traces
The reduced processing of internal layers makes the Edge-coupled Embedded Microstrip construction easy to fabricate with more consistent results than the equivalent surface trace structure. During the manufacturing process resin will be forced in between the traces resulting in a resin-rich region (shown as Rer in the 1B1A1R model below) between the two traces. This region will result in a dielectric with Er different from the rest of the structure.

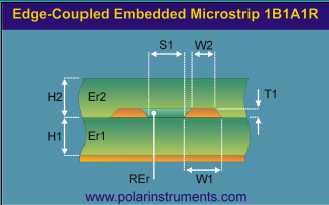

Edge-coupled embedded microstrip with resin-rich region between the traces
