Viewing the Si9000 data tables

The Si9000 makes a comprehensive range of data for the selected structure available in a convenient tabular form.

Once calculation is complete, in single-ended mode click on the associated tab to view the Single-Ended, SPICE RLGC or 2-Port S-Parameter data.

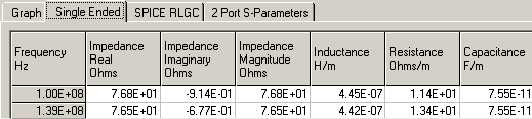

Single-ended mode data

For differential models the Si9000 provides data for Odd and Even Mode, SPICE RLGC, and 4 Port S-Parameters.

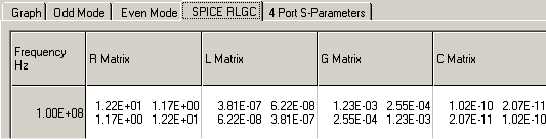

Differential mode data
