Testing Controlled Impedance Boards with Test Coupons
Application Note AP124

Using test coupons to test controlled impedance boards

The accuracy of a controlled impedance trace on a PCB is usually critical to the correct performance of the PCB.

We've seen from other application notes that the impedance of a trace depends on a number of factors, including the dimensions of the trace (i.e. trace width and thickness) and thickness and dielectric constant of the laminate and pre-preg material.

It's common practice for board manufacturers to check controlled impedance build integrity initially by building engineering lots to verify copper weight, line widths and dielectric thickness and constant before beginning volume production.

Even in production it's common to perform 100% controlled impedance testing on controlled impedance boards (in fact, 100% controlled impedance testing may probably be part of the acceptance criteria for the board).

Testing in practice

When testing a controlled impedance PCB, however, you may run into practical difficulties. For example, it's not uncommon for a controlled impedance trace to be inaccessible for verification. Although it may be possible to add extra pads and vias to test the trace doing so will affect the performance of the trace and will occupy valuable board space.

Other problems may crop up in testing:

  • Planes are not interconnected on the PCB and this can result in inaccurate measurements.
  • To achieve accurate and consistent test results testing should be performed on straight single traces of at least 150mm in length — the actual PCB traces may often be much shorter than that.
  • A shorter test trace will reduce the Gage R&R of the impedance test — regardless of the risetime of the TDR source

To avoid some of these difficulties, testing is normally performed, not on the board itself, but on a test coupon manufactured at the same time and on the same panel as the PCB.

Test coupons

Test coupons are typically small PCBs approximately 200x30mm with exactly the same layer and trace construction as the main PCB.

For example, a coupon will include traces of the same line width and copper weight on the same layer as the controlled impedances on the main PCB. The coupon will be located so as to represent actual board conditions for plating, etching and lamination. It's common practice to fabricate one coupon at each end of a board panel to verify consistency of performance across the whole panel

At the time the artwork is produced, the same aperture code used for the controlled impedance traces is used to produce the test traces on the coupon. The coupon is fabricated at the same time as the main PCB so the coupon will exhibit the same impedance as the PCB. The impedance of a trace is dependent upon all the PCB's dimensions and electrical properties so the use of coupons for testing is an accurate and reliable test for manufacturing quality and consistency.

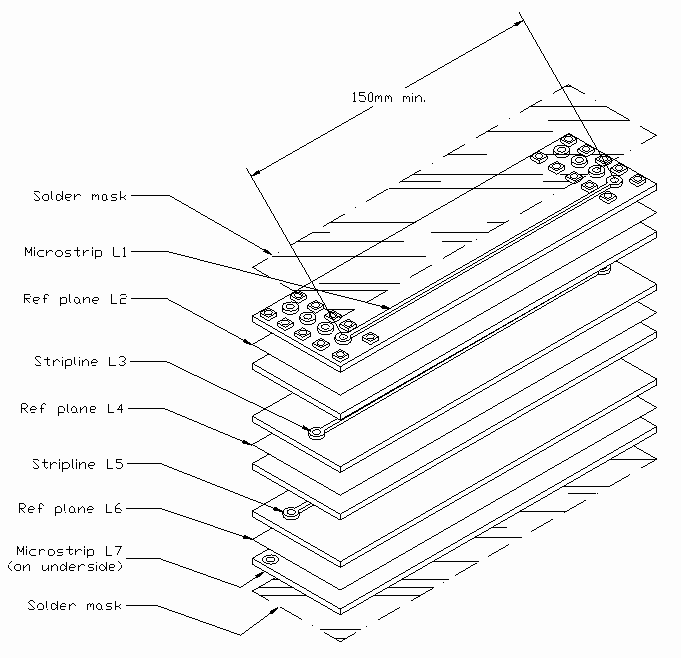

Exploded diagram of test coupon

Exploded diagram of test coupon

The diagram illustrates a test coupon for a board containing two microstrip traces and two stripline traces. The square pads on the surface identify the reference points for the power and ground planes. The reference planes will normally be connected to each other using plated through hole vias and brought out to the square pads.

The two microstrip traces are formed by L1 and its reference plane L2, and L7 and its reference plane L6 (on the surfaces of the upper and lower layers).

The two stripline traces are formed by L3, sandwiched between reference planes L2 and L4 and L5, sandwiched between reference planes L4 and L6.

The coupon will use the same solder mask requirements as the board. The pattern of conductors on the coupon will be designed to reproduce conditions on the board. For example, if conductors on the board are routed orthogonally a similar pattern of crossovers is used on the coupon.

Impedance coupon generation

Often coupons are scripted in at front end during the CAM process. Polar's CGen controlled impedance test coupon generator is a powerful coupon generator which makes impedance coupon generation straightforward – especially if you are building impedance controlled boards for the first time. When combined with Speedstack PCB you can also document and design your stackups and generate test programs automatically for a CITS impedance test system..
